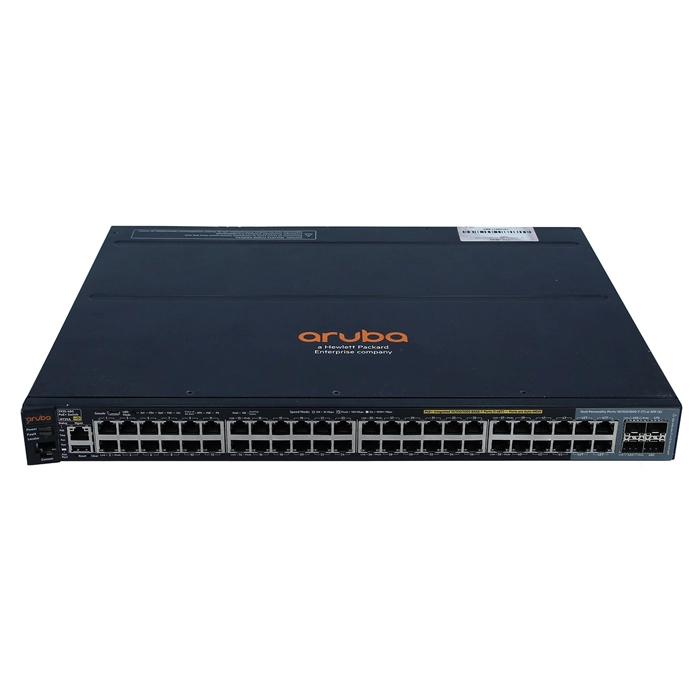

HP J9836A#AKM | Aruba 2920 Series 2920-48G-PoE+ 740W 44 x RJ-45 10/100/1000Base-T and 4 x Dual Personality SFP Ports + 2 x Expansion Module Layer 3 Managed Stackable Gigabit Ethernet Network Switch
$542.55
$510.00Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP J9836A#AKM | Aruba 2920 Series 2920-48G-PoE+ 740W 44 x RJ-45 10/100/1000Base-T and 4 x Dual Personality SFP Ports + 2 x Expansion Module Layer 3 Managed Stackable Gigabit Ethernet Network Switch
- HP Aruba 2920-48G PoE+ 740W (J9836A#AKM) is built to handle IT teams standardizing wiring closets across a multi-building campus without drama. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. Port-wise, it offers 55 total network ports, laid out as 48xGigabit EthernetPoE+,RJ-45 and 4xGigabit EthernetSFP (mini-GBIC),Uplink and 2xExpansion Module and 1xStacking Module, topping out at Gigabit (1GbE) per port. It rounds this out with SFP (mini-GBIC),Stacking Module,Expansion Module expansion for uplinks and stacking so multiple units run as one logical switch. Onboard flash storage of 1 (GB) keeps firmware and config backups local to the switch. With PoE+ on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and standard front-to-back airflow that lines up with typical rack airflow planning. GotoDirect ships this HP Aruba switch as genuine stock with full warranty backing and fast delivery nationwide.
Technical Documents:
General Information:
| Product Line | 2920 |
|---|---|
| Model | 2920-48G PoE+ 740W |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 55 |
| Number of Expansion Slots | 7 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Stacking Port | Yes |
| Flash Storage Memory | 1 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| Height | 1.75 Inches |
| Width | 17.42 Inches |
| Depth | 13.23 Inches |
| Weight | 12.86 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
