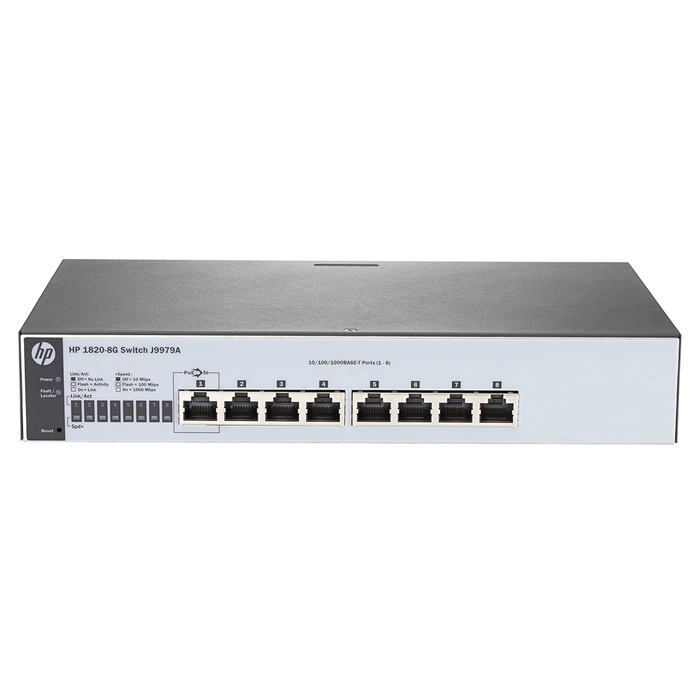

HP J9979A#B8X | OfficeConnect 1820 Series 1820-8G 8 x 10/100/1000Base-T RJ-45 Ports Layer 2 Managed Gigabit Ethernet Network Switch

Part No J9979A#B8X
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$747.14
$702.31
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9979A#B8X | OfficeConnect 1820 Series 1820-8G 8 x 10/100/1000Base-T RJ-45 Ports Layer 2 Managed Gigabit Ethernet Network Switch
  • HP OfficeConnect 1820-8G (J9979A#B8X) is worth a close look if you're setting up or upgrading a network for small networks where simple, unmanaged switching is all that's required. Growing offices and branch sites that want managed features like VLANs, QoS and basic monitoring - but not the cost of a full data-center switch - line up well with this one. On the port side, you get 8 total network ports, laid out as 8xGigabit EthernetRJ-45, topping out at Gigabit (1GbE) per port. Layer 2 operation keeps the design lean - MAC-table forwarding and VLANs, without routing overhead. On top of that, it has a fixed-port design that keeps configuration simple. Firmware and configuration live in onboard non-volatile memory, surviving reboots and power cycles. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air standard front-to-back airflow, so it fits cleanly next to existing gear. Also, twisted pair media keeps it compatible with existing cabling. GotoDirect sources this HP OfficeConnect switch as a genuine, warranty-backed unit, with fast shipping across the US.
Technical Documents:
General Information:
Product Line OfficeConnect 1820
Model 1820-8G
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots 8 x Gigabit Ethernet RJ-45
Total Number of Network Ports 8
Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T
Media Standard Twisted Pair
Manageable Yes
Layer Supported 2
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 10 Inches
Depth 6.28 Inches
Weight 1.81 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 7 µs (LIFO 64-byte packets)
  • 1000 Mb Latency: < 2.4 µs (LIFO 64-byte packets)
  • Throughput: up to 11.9 Mpps (64-byte packets)
  • Switching capacity: 16 Gbps
  • MAC address table size: 8000 entries
