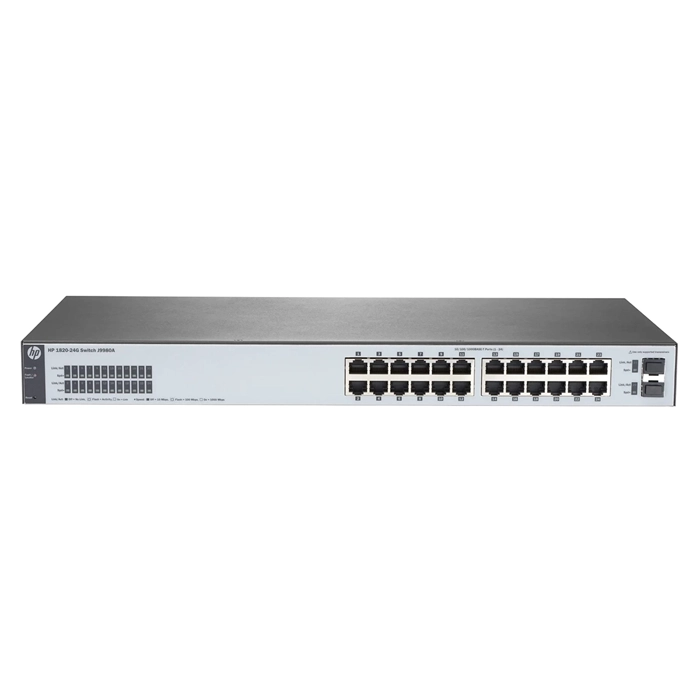

HP J9980AR#ACF | OfficeConnect 1820 Series 1820-24G 24 x 10/100/1000Base-T RJ-45 and 2 x SFP (mini-GBIC) Ports Layer 2 Managed Gigabit Ethernet Network Switch

Part No J9980AR#ACF
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$284.02
$266.98
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9980AR#ACF | OfficeConnect 1820 Series 1820-24G 24 x 10/100/1000Base-T RJ-45 and 2 x SFP (mini-GBIC) Ports Layer 2 Managed Gigabit Ethernet Network Switch
  • HP OfficeConnect 1820-24G (J9980AR#ACF) shows up a lot in shortlists for network cores and aggregation layers feeding busy server racks, and for good reason. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Wiring is handled by 26 total network ports, laid out as 24xGigabit EthernetRJ-45 and 2xGigabit EthernetSFP (mini-GBIC), topping out at Gigabit (1GbE) per port. It also adds SFP (mini-GBIC) expansion for uplinks. Settings and firmware are stored in onboard non-volatile memory, so they survive reboots and power cycles. As a Layer 2 switch, it focuses on fast MAC-address forwarding and VLAN segmentation rather than routing. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, twisted pair media over SFP (mini-GBIC) covers both copper and fiber runs. GotoDirect stocks the HP OfficeConnect 1820-24G as genuine, warranty-covered hardware, with fast delivery across the US.
Technical Documents:
General Information:
Product Line OfficeConnect 1820
Model 1820-24G
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet RJ-45
  • 2 x Gigabit Ethernet SFP (mini-GBIC)
Total Number of Network Ports 26
Number of Expansion Slots 2
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 1000Base-X
Media Standard Twisted Pair
Manageable Yes
Layer Supported 2
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.42 Inches
Depth 9.69 Inches
Weight 6 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 7 µs (LIFO 64-byte packets)
  • 1000 Mb Latency: < 2.4 µs (LIFO 64-byte packets)
  • Throughput: up to 38.6 Mpps (64-byte packets)
  • Switching capacity: 52 Gbps
  • MAC address table size: 8000 entries
