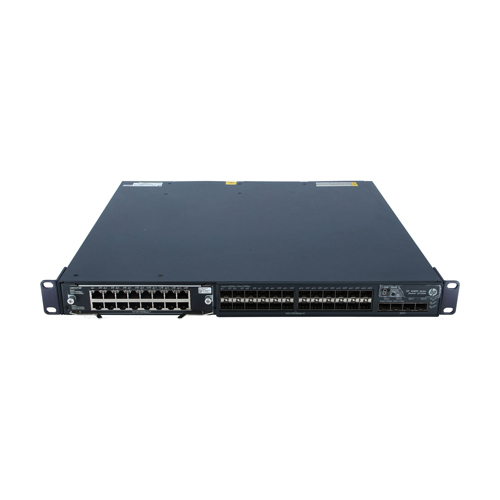

HP JC103AR#ACC | FlexFabric 5800 Series 5800-24G-SFP 24 x 1000Base-X SFP (mini-GBIC) Slots and 4 x 10GbE Fixed SFP+ Ports and 1 x Extended Module Slot Layer 3 Managed Gigabit Ethernet Network Switch

Part No JC103AR#ACC
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$4,170.49
$3,920.26
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JC103AR#ACC | FlexFabric 5800 Series 5800-24G-SFP 24 x 1000Base-X SFP (mini-GBIC) Slots and 4 x 10GbE Fixed SFP+ Ports and 1 x Extended Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
  • HP FlexFabric 5800-24G-SFP (JC103AR#ACC) is a strong, no-nonsense fit for data centers, virtualization hosts and server rooms that need high east-west throughput. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Port-wise, it offers 29 total network ports, laid out as 24xGigabit EthernetSFP (mini-GBIC) and 4x10 Gigabit EthernetSFP+ and 1xExpansion Module, topping out at 10GbE per port. Beyond the base ports, there's SFP (mini-GBIC),SFP+,Expansion Module expansion for uplinks. A built-in 512 (MB) of flash storage holds firmware images and config backups on the switch itself. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air standard front-to-back airflow, so it fits cleanly next to existing gear. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC),SFP+,Expansion Module covers both copper and fiber runs. GotoDirect ships this HP FlexFabric switch as genuine stock with full warranty backing and fast delivery nationwide.
General Information:
Product Line FlexFabric 5800
Model 5800-24G-SFP
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet SFP (mini-GBIC)
  • 4 x 10 Gigabit Ethernet SFP+
  • 1 x Expansion Module
Total Number of Network Ports 29
Number of Expansion Slots 5
Expansion Slots Details
  • SFP (mini-GBIC)
  • SFP+
  • Expansion Module
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 512 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.72 Inches
Width 17.3 Inches
Depth 16.81 Inches
Weight 18.74 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • VCCI
  • ICES-003
Miscellaneous:
Additional Features
  • Latency: 4.02 µs (Store and Forward) (64-byte packets)
  • Throughput: 155 Mpps
  • Routing/Switching capacity: 208 Gbps
  • Routing table size:  16000 entries (IPv4)
  • MAC address table size: 32000 entries
