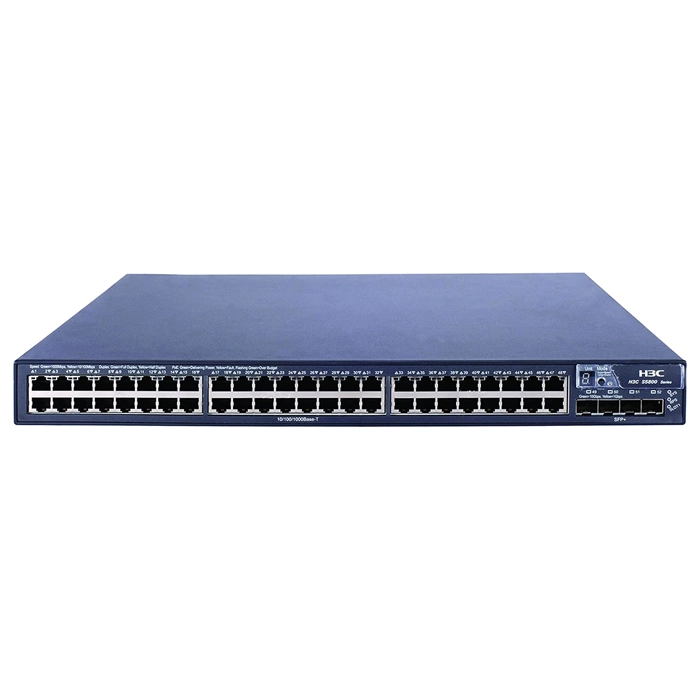

HP JC105B#ACF | FlexFabric 5800 Series 5800-48G 48 x 10/100/1000Base-T RJ-45 and 4 x 10GbE Fixed SFP+ Ports and 1 x Extended Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
$1,242.52
$1,167.97Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JC105B#ACF | FlexFabric 5800 Series 5800-48G 48 x 10/100/1000Base-T RJ-45 and 4 x 10GbE Fixed SFP+ Ports and 1 x Extended Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
- HP FlexFabric 5800-48G (JC105B#ACF) is the switch IT teams supporting IT teams building out server, NAS and storage backbones often turn to when they need something that just works. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Port-wise, it offers 53 total network ports, laid out as 48xGigabit EthernetRJ-45 and 4x10 Gigabit EthernetSFP+ and 1xExpansion Module, topping out at 10GbE per port. It also adds SFP+,Expansion Module expansion for uplinks. Onboard flash storage of 512 (MB) keeps firmware and config backups local to the switch. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+,Expansion Module covers both copper and fiber runs. GotoDirect stocks the HP FlexFabric 5800-48G as genuine, warranty-covered hardware, with fast delivery across the US.
Technical Documents:
General Information:
| Product Line | FlexFabric 5800 |
|---|---|
| Model | 5800-48G |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 53 |
| Number of Expansion Slots | 5 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| Console Management Port | Yes |
| Flash Storage Memory | 512 MB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| Height | 1.72 Inches |
| Width | 17.32 Inches |
| Depth | 14.45 Inches |
| Weight | 14.33 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
