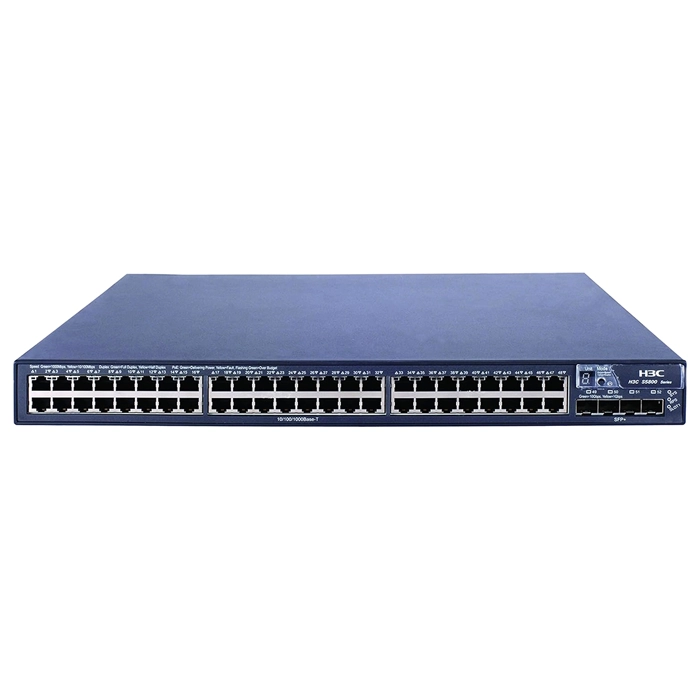

HP JC105B#AKL | FlexFabric 5800 Series 5800-48G 48 x 10/100/1000Base-T RJ-45 and 4 x 10GbE Fixed SFP+ Ports and 1 x Extended Module Slot Layer 3 Managed Gigabit Ethernet Network Switch

Part No JC105B#AKL
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$1,242.52
$1,167.97
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JC105B#AKL | FlexFabric 5800 Series 5800-48G 48 x 10/100/1000Base-T RJ-45 and 4 x 10GbE Fixed SFP+ Ports and 1 x Extended Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
  • HP FlexFabric 5800-48G (JC105B#AKL) is the switch IT teams supporting colocation and hosting environments packing dense server racks often turn to when they need something that just works. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. It brings 53 total network ports, laid out as 48xGigabit EthernetRJ-45 and 4x10 Gigabit EthernetSFP+ and 1xExpansion Module, topping out at 10GbE per port. Beyond the base ports, there's SFP+,Expansion Module expansion for uplinks. Onboard flash storage of 512 (MB) keeps firmware and config backups local to the switch. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+,Expansion Module covers both copper and fiber runs. Buy the HP FlexFabric 5800-48G from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
General Information:
Product Line FlexFabric 5800
Model 5800-48G
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x Gigabit Ethernet RJ-45
  • 4 x 10 Gigabit Ethernet SFP+
  • 1 x Expansion Module
Total Number of Network Ports 53
Number of Expansion Slots 5
Expansion Slots Details
  • SFP+
  • Expansion Module
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 512 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.72 Inches
Width 17.32 Inches
Depth 14.45 Inches
Weight 14.33 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • VCCI
  • ICES-003
Miscellaneous:
Additional Features
  • Latency: 4.02 µs (Store and Forward) (64-byte packets)
  • Throughput: 190 Mpps
  • Routing/Switching capacity: 256 Gbps
  • Routing table size:  16000 entries (IPv4)
  • MAC address table size: 32000 entries
