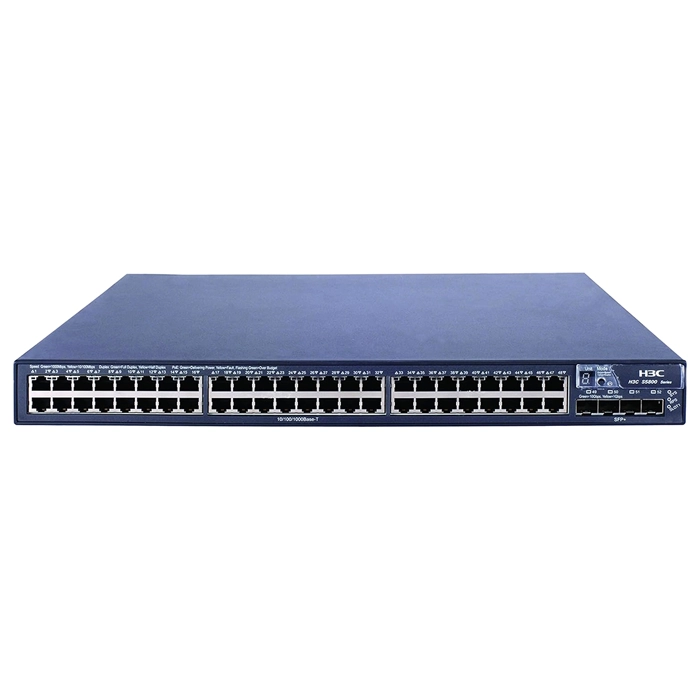

HP JC105B#B2E | FlexFabric 5800 Series 5800-48G 48 x 10/100/1000Base-T RJ-45 and 4 x 10GbE Fixed SFP+ Ports and 1 x Extended Module Slot Layer 3 Managed Gigabit Ethernet Network Switch

Part No JC105B#B2E
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$1,242.52
$1,167.97
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JC105B#B2E | FlexFabric 5800 Series 5800-48G 48 x 10/100/1000Base-T RJ-45 and 4 x 10GbE Fixed SFP+ Ports and 1 x Extended Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
  • HP FlexFabric 5800-48G (JC105B#B2E) makes sense if you're shopping for organizations running virtualization clusters, NAS arrays or render farms that need low-latency, high-bandwidth links. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. On the port side, you get 53 total network ports, laid out as 48xGigabit EthernetRJ-45 and 4x10 Gigabit EthernetSFP+ and 1xExpansion Module, topping out at 10GbE per port. Beyond the base ports, there's SFP+,Expansion Module expansion for uplinks. Onboard flash storage of 512 (MB) keeps firmware and config backups local to the switch. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+,Expansion Module covers both copper and fiber runs. GotoDirect sources this HP FlexFabric switch as a genuine, warranty-backed unit, with fast shipping across the US.
General Information:
Product Line FlexFabric 5800
Model 5800-48G
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x Gigabit Ethernet RJ-45
  • 4 x 10 Gigabit Ethernet SFP+
  • 1 x Expansion Module
Total Number of Network Ports 53
Number of Expansion Slots 5
Expansion Slots Details
  • SFP+
  • Expansion Module
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 512 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.72 Inches
Width 17.32 Inches
Depth 14.45 Inches
Weight 14.33 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • VCCI
  • ICES-003
Miscellaneous:
Additional Features
  • Latency: 4.02 µs (Store and Forward) (64-byte packets)
  • Throughput: 190 Mpps
  • Routing/Switching capacity: 256 Gbps
  • Routing table size:  16000 entries (IPv4)
  • MAC address table size: 32000 entries
