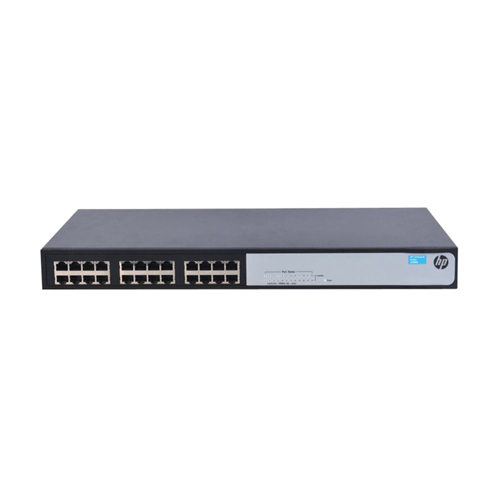

HP JD986BR#B8X | OfficeConnect 1410 Series 1410-24-R 24 x 10/100Base-TX RJ-45 Ports Layer 2 Unmanaged Fast Ethernet Network Switch

Part No JD986BR#B8X
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$250.00
$235.00
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JD986BR#B8X | OfficeConnect 1410 Series 1410-24-R 24 x 10/100Base-TX RJ-45 Ports Layer 2 Unmanaged Fast Ethernet Network Switch
  • HP OfficeConnect 1410-24-R (JD986BR#B8X) is worth a close look if you're setting up or upgrading a network for anyone who wants a no-configuration switch that just extends the network. Home offices, small businesses and workgroups that just want more reliable ports - without VLANs or a CLI to learn - are the target here. Plug it in and go. It brings 24 total network ports, laid out as 24xFast EthernetRJ-45, topping out at Fast Ethernet (100Mb) per port. Beyond the base ports, there's a fixed-port design that keeps configuration simple. A built-in 8 (KB) of flash storage holds firmware images and config backups on the switch itself. Layer 2 operation keeps the design lean - MAC-table forwarding and VLANs, without routing overhead. For installation, it's desktop-friendly, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. Also, twisted pair media keeps it compatible with existing cabling. Buy the HP OfficeConnect 1410-24-R from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
Product Line OfficeConnect 1410
Model 1410-24-R
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots 24 x Fast Ethernet RJ-45
Total Number of Network Ports 24
Ethernet Technology Fast Ethernet
Network Technology 10/100Base-TX
Media Standard Twisted Pair
Manageable No
Layer Supported 2
Flash Storage Memory 8 KB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor
  • Standalone
  • Rack-mountable
  • Wall-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.32 Inches
Depth 6.81 Inches
Weight 4.41 lbs
Compliance Standards:
Green Compliance FCC
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 11 µs (LIFO 64-byte packets)
  • Throughput: up to 3.5 million pps (64-byte packets)
  • Switching capacity: 4.8 Gb/s
  • MAC address table size: 8192 entries
