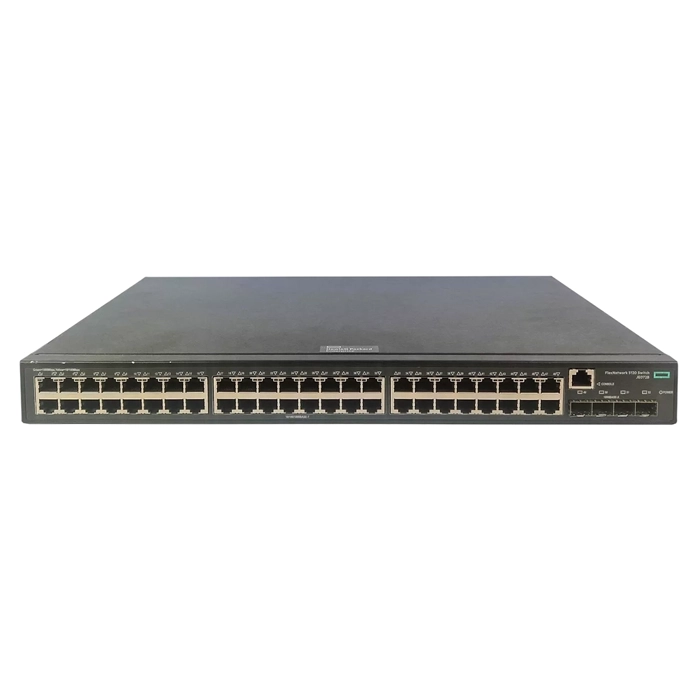

HP JE072BR#B8X | FlexNetwork 5120 SI Series 5120-48G SI 48 x 10/100/1000Base-T RJ-45 and 4 x SFP (mini-GBIC) Ports Layer 3 Managed Gigabit Ethernet Network Switch

Part No JE072BR#B8X
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$828.97
$779.23
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JE072BR#B8X | FlexNetwork 5120 SI Series 5120-48G SI 48 x 10/100/1000Base-T RJ-45 and 4 x SFP (mini-GBIC) Ports Layer 3 Managed Gigabit Ethernet Network Switch
  • HP FlexNetwork 5120-48G SI (JE072BR#B8X) is a solid pick for network cores and aggregation layers feeding busy server racks that don't want to overthink the network layer. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Wiring is handled by 52 total network ports, laid out as 48xGigabit EthernetRJ-45 and 4xGigabit EthernetSFP (mini-GBIC), topping out at Gigabit (1GbE) per port. On top of that, it has SFP (mini-GBIC) expansion for uplinks. A built-in 128 (MB) of flash storage holds firmware images and config backups on the switch itself. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air standard front-to-back airflow, so it fits cleanly next to existing gear. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. When you order the HP FlexNetwork 5120-48G SI through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.
General Information:
Product Line FlexNetwork 5120 SI
Model 5120-48G SI
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x Gigabit Ethernet RJ-45
  • 4 x Gigabit Ethernet SFP (mini-GBIC)
Total Number of Network Ports 52
Number of Expansion Slots 4
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 128 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.72 Inches
Width 17.3 Inches
Depth 10.24 Inches
Weight 11.02 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • WEEE
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 1000 Mb Latency: < 3 s
  • Throughput: up to 77.4 Mpps
  • Routing/Switching capacity: 104 Gbps
  • Routing table size: 32 entries (IPv4)
