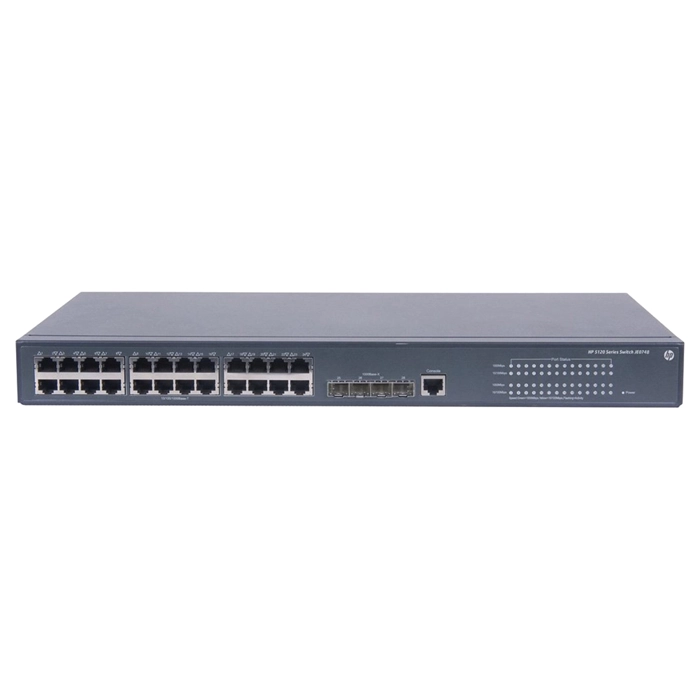

HP JE074B#0D1 | FlexNetwork 5120 SI Series 5120-24G SI 24 x 10/100/1000Base-T RJ-45 and 4 x SFP (mini-GBIC) Ports Layer 3 Managed Gigabit Ethernet Network Switch

Part No JE074B#0D1
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$1,205.52
$1,133.19
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JE074B#0D1 | FlexNetwork 5120 SI Series 5120-24G SI 24 x 10/100/1000Base-T RJ-45 and 4 x SFP (mini-GBIC) Ports Layer 3 Managed Gigabit Ethernet Network Switch
  • HP FlexNetwork 5120-24G SI (JE074B#0D1) is a strong, no-nonsense fit for media and rendering studios moving large files between workstations and storage. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Wiring is handled by 28 total network ports, laid out as 24xGigabit EthernetRJ-45 and 4xGigabit EthernetSFP (mini-GBIC), topping out at Gigabit (1GbE) per port. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. Beyond the base ports, there's SFP (mini-GBIC) expansion for uplinks. With 128 (MB) of onboard flash, firmware and configuration backups don't depend on a remote server. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air standard front-to-back airflow, so it fits cleanly next to existing gear. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. GotoDirect ships this HP FlexNetwork switch as genuine stock with full warranty backing and fast delivery nationwide.
General Information:
Product Line FlexNetwork 5120 SI
Model 5120-24G SI
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet RJ-45
  • 4 x Gigabit Ethernet SFP (mini-GBIC)
Total Number of Network Ports 28
Number of Expansion Slots 4
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 128 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.72 Inches
Width 17.3 Inches
Depth 6.3 Inches
Weight 6.61 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • WEEE
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 1000 Mb Latency: < 3 s
  • Throughput: up to 41.7 Mpps
  • Routing/Switching capacity: 56 Gbps
  • Routing table size: 32 entries (IPv4)
