Image may differ from original

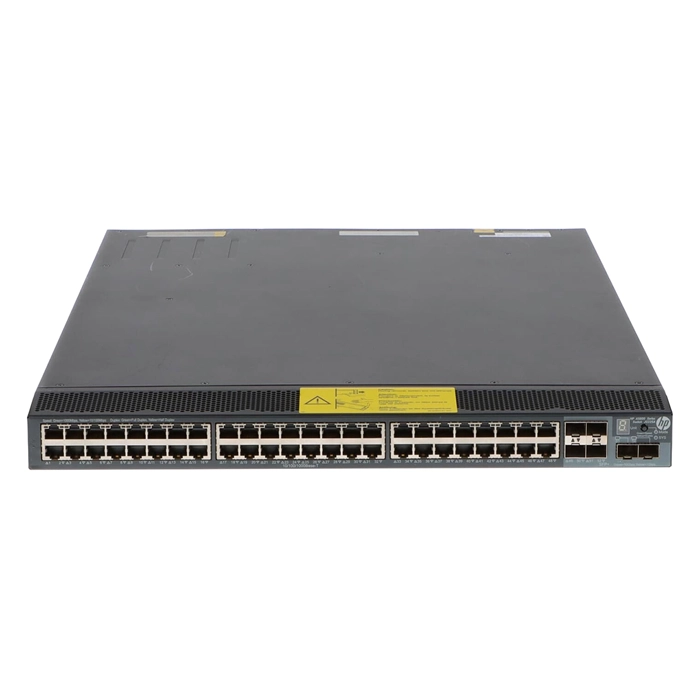

HP JG225B#0D1 | FlexFabric 5800 Series 5800AF-48G 48 x 10/100/1000Base-T RJ-45 and 6 x 10GbE Fixed SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
$345.98
$325.22Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JG225B#0D1 | FlexFabric 5800 Series 5800AF-48G 48 x 10/100/1000Base-T RJ-45 and 6 x 10GbE Fixed SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
- HP FlexFabric 5800AF-48G (JG225B#0D1) is the switch IT teams supporting media and rendering studios moving large files between workstations and storage often turn to when they need something that just works. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. It brings 54 total network ports, laid out as 48xGigabit EthernetRJ-45 and 6x10 Gigabit EthernetSFP+, topping out at 10GbE per port. Beyond the base ports, there's SFP+ expansion for uplinks. With 512 (MB) of onboard flash, firmware and configuration backups don't depend on a remote server. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect ships this HP FlexFabric switch as genuine stock with full warranty backing and fast delivery nationwide.
Technical Documents:
General Information:
| Product Line | FlexFabric 5800 |
|---|---|
| Model | 5800AF-48G |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 54 |
| Number of Expansion Slots | 6 |
| Expansion Slots Details | SFP+ |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 512 MB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| Height | 1.72 Inches |
| Width | 17.32 Inches |
| Depth | 25.98 Inches |
| Weight | 22.05 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
