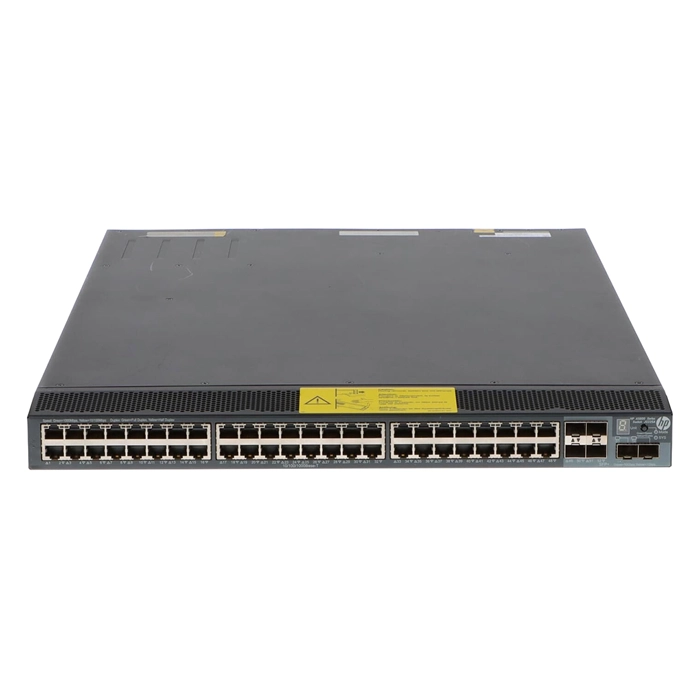

HP JG225B-RNG | FlexFabric 5800 Series 5800AF-48G 48 x 10/100/1000Base-T RJ-45 and 6 x 10GbE Fixed SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch

Part No JG225B-RNG
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$363.44
$341.63
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JG225B-RNG | FlexFabric 5800 Series 5800AF-48G 48 x 10/100/1000Base-T RJ-45 and 6 x 10GbE Fixed SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
  • HP FlexFabric 5800AF-48G (JG225B-RNG) is built to handle IT teams building out server, NAS and storage backbones without drama. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. On the port side, you get 54 total network ports, laid out as 48xGigabit EthernetRJ-45 and 6x10 Gigabit EthernetSFP+, topping out at 10GbE per port. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. It also adds SFP+ expansion for uplinks. With 512 (MB) of onboard flash, firmware and configuration backups don't depend on a remote server. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect ships this HP FlexFabric switch as genuine stock with full warranty backing and fast delivery nationwide.
General Information:
Product Line FlexFabric 5800
Model 5800AF-48G
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x Gigabit Ethernet RJ-45
  • 6 x 10 Gigabit Ethernet SFP+
Total Number of Network Ports 54
Number of Expansion Slots 6
Expansion Slots Details SFP+
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Flash Storage Memory 512 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.72 Inches
Width 17.32 Inches
Depth 25.98 Inches
Weight 22.05 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • VCCI
  • ICES-003
Miscellaneous:
Additional Features
  • Latency: < 5 µs (64-byte packets)
  • Throughput: 161 Mpps
  • Routing/Switching capacity: 216 Gbps
  • Routing table size:  16000 entries (IPv4)
  • MAC address table size: 32000 entries
