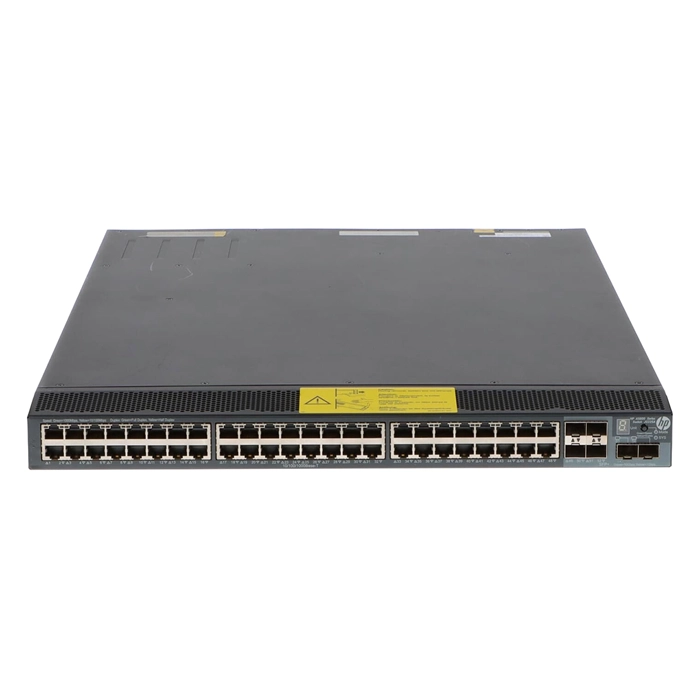

HP JG225BR#0D1 | FlexFabric 5800 Series 5800AF-48G 48 x 10/100/1000Base-T RJ-45 and 6 x 10GbE Fixed SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
$345.98
$325.22Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JG225BR#0D1 | FlexFabric 5800 Series 5800AF-48G 48 x 10/100/1000Base-T RJ-45 and 6 x 10GbE Fixed SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
- HP FlexFabric 5800AF-48G (JG225BR#0D1) is a solid pick for data centers, virtualization hosts and server rooms that need high east-west throughput that don't want to overthink the network layer. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Wiring is handled by 54 total network ports, laid out as 48xGigabit EthernetRJ-45 and 6x10 Gigabit EthernetSFP+, topping out at 10GbE per port. Beyond the base ports, there's SFP+ expansion for uplinks. Onboard flash storage of 512 (MB) keeps firmware and config backups local to the switch. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect stocks the HP FlexFabric 5800AF-48G as genuine, warranty-covered hardware, with fast delivery across the US.
Technical Documents:
General Information:
| Product Line | FlexFabric 5800 |
|---|---|
| Model | 5800AF-48G |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 54 |
| Number of Expansion Slots | 6 |
| Expansion Slots Details | SFP+ |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 512 MB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| Height | 1.72 Inches |
| Width | 17.32 Inches |
| Depth | 25.98 Inches |
| Weight | 22.05 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
