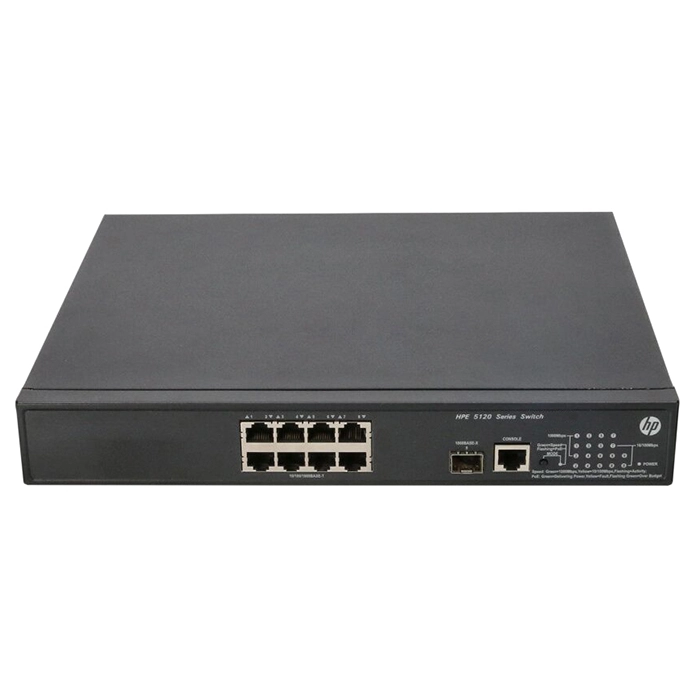

Image may differ from original
HP JG309-61001 | FlexNetwork 5120 SI Series 5120-8G-PoE+ (180W) SI 8 x 10/100/1000Base-T RJ-45 PoE+ and 1 x SFP (mini-GBIC) Ports Layer 3 Managed Gigabit Ethernet Network Switch
Description:
- HP JG309-61001 | FlexNetwork 5120 SI Series 5120-8G-PoE+ (180W) SI 8 x 10/100/1000Base-T RJ-45 PoE+ and 1 x SFP (mini-GBIC) Ports Layer 3 Managed Gigabit Ethernet Network Switch
- HP FlexNetwork 5120-8G-PoE+ (180W) SI (JG309-61001) is worth a close look if you're setting up or upgrading a network for retail branches running a couple of APs and a PoE phone or two. It suits small offices, retail locations and branch sites that need to power a modest number of APs, cameras or VoIP phones, plus home labs where PoE simplifies cabling without justifying an enterprise-class switch. Wiring is handled by 9 total network ports, laid out as 8xGigabit EthernetPoE+,RJ-45 and 1xGigabit EthernetSFP (mini-GBIC), topping out at Gigabit (1GbE) per port. Beyond the base ports, there's SFP (mini-GBIC) expansion for uplinks. With 128 (MB) of onboard flash, firmware and configuration backups don't depend on a remote server. PoE+ support means powered endpoints - APs, cameras, phones - plug straight into the switch without extra adapters. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. Buy the HP FlexNetwork 5120-8G-PoE+ (180W) SI from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
| Product Line | FlexNetwork 5120 SI |
|---|---|
| Model | 5120-8G-PoE+ (180W) SI |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 9 |
| Number of Expansion Slots | 1 |
| Expansion Slots Details | SFP (mini-GBIC) |
| Modular Expansion | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| Console Management Port | Yes |
| Flash Storage Memory | 128 MB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| Height | 1.72 Inches |
| Width | 11.81 Inches |
| Depth | 6.3 Inches |
| Weight | 6.61 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
