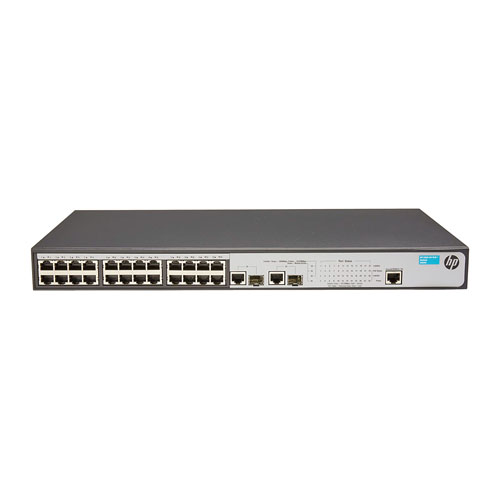

HP JG539A#AKL | OfficeConnect 1910 Series 1910-24-PoE+ 24 x RJ-45 PoE+ 10/100Base-TX and 2 Combo x SFP (mini-GBIC) Ports Layer 3 Managed Fast Ethernet Network Switch

Part No JG539A#AKL
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$1,012.80
$952.03
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JG539A#AKL | OfficeConnect 1910 Series 1910-24-PoE+ 24 x RJ-45 PoE+ 10/100Base-TX and 2 Combo x SFP (mini-GBIC) Ports Layer 3 Managed Fast Ethernet Network Switch
  • HP OfficeConnect 1910-24-PoE+ (JG539A#AKL) is a solid pick for large offices consolidating dozens of PoE endpoints onto fewer switches that don't want to overthink the network layer. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. Wiring is handled by 28 total network ports, laid out as 24xFast EthernetPoE+,RJ-45 and 2xGigabit EthernetRJ-45 and 2xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. Built-in PoE+ power delivery runs access points, IP cameras and VoIP phones straight off the switch, cutting down on wall adapters. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. On top of that, it has SFP (mini-GBIC) expansion for uplinks. Configuration persists in onboard memory through reboots and power cycles, no separate storage needed. For installation, it's desktop-friendly, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. Buy the HP OfficeConnect 1910-24-PoE+ from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
Product Line OfficeConnect 1910
Model 1910-24-PoE+
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Fast Ethernet PoE+, RJ-45
  • 2 x Gigabit Ethernet RJ-45
  • 2 x Gigabit Ethernet SFP (mini-GBIC), Uplink
Total Number of Network Ports 28
Number of Expansion Slots 1
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology
  • Fast Ethernet
  • Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10/100Base-TX
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor
  • Standalone
  • Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.32 Inches
Depth 9.37 Inches
Weight 7.28 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 5 µs
  • 1000 Mb Latency: < 5 µs
  • Throughput: up to 6.6 Mpps (64-byte packets)
  • Routing/Switching capacity: 8.8 Gb/s
  • Routing table size: 32 entries (IPv4), 32 entries (IPv6)
  • MAC address table size: 8192 entries
