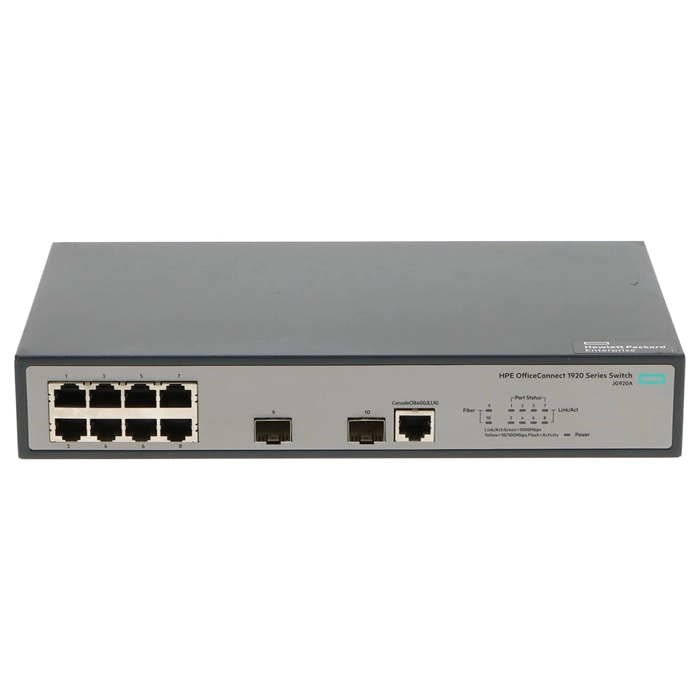

HP JG920A#AC4 | OfficeConnect 1920 Series 1920-8G 8 x RJ-45 10/100/1000Base-T and 2 x SFP (mini-GBIC) Ports Layer 3 Managed Gigabit Ethernet Network Switch

Part No JG920A#AC4
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$223.40
$210.00
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JG920A#AC4 | OfficeConnect 1920 Series 1920-8G 8 x RJ-45 10/100/1000Base-T and 2 x SFP (mini-GBIC) Ports Layer 3 Managed Gigabit Ethernet Network Switch
  • HP OfficeConnect 1920-8G (JG920A#AC4) makes sense if you're shopping for workgroups and small offices adding extra wired ports without extra configuration. It's well suited to growing offices and branch sites that need managed features - VLANs, QoS, basic monitoring - without the cost or complexity of a full data-center switch. Port-wise, it offers 10 total network ports, laid out as 8xGigabit EthernetRJ-45 and 2xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. Beyond the base ports, there's SFP (mini-GBIC) expansion for uplinks. With 32 (MB) of onboard flash, firmware and configuration backups don't depend on a remote server. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. Mounting is straightforward: desktop-friendly, in a 1U footprint, standard 19-inch rails, ac input power, and standard front-to-back airflow that lines up with typical rack airflow planning. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. Buy the HP OfficeConnect 1920-8G from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
Product Line OfficeConnect 1920
Model 1920-8G
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 8 x Gigabit Ethernet RJ-45
  • 2 x Gigabit Ethernet SFP (mini-GBIC), Uplink
Total Number of Network Ports 10
Number of Expansion Slots 2
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 32 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor
  • Standalone
  • Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 10.47 Inches
Depth 6.38 Inches
Weight 1.98 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 5 µs
  • 1000 Mb Latency: < 5 µs
  • Throughput: 14.8 Mpps (64-byte packets)
  • Routing/Switching capacity: 20 Gbps
  • Routing table size: 32 entries (IPv4), 32 entries (IPv6)
  • MAC address table size: 8192 entries
