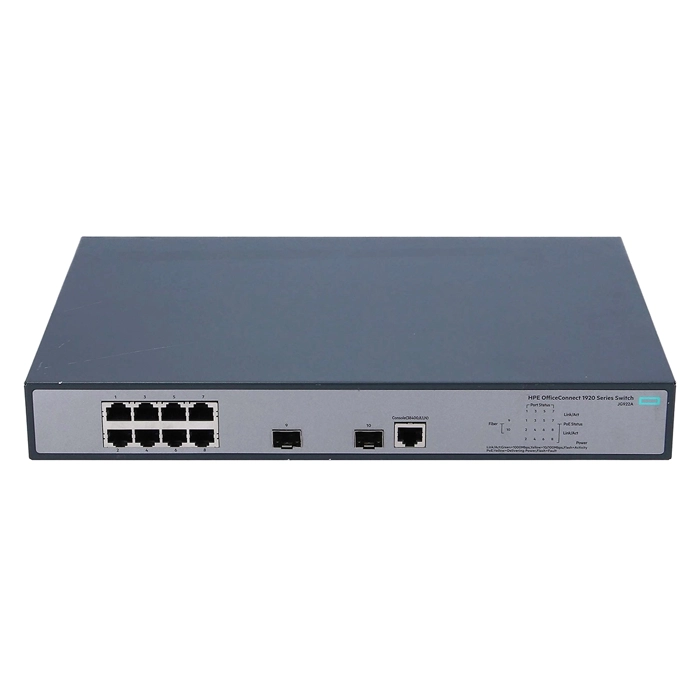

HP JG922A#B2B | OfficeConnect 1920 Series 1920-8G-PoE+ (180W) 8 x RJ-45 PoE+ 10/100/1000Base-T and 2 x SFP (mini-GBIC) Ports Layer 3 Managed Gigabit Ethernet Network Switch

Part No JG922A#B2B
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$319.36
$300.20
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JG922A#B2B | OfficeConnect 1920 Series 1920-8G-PoE+ (180W) 8 x RJ-45 PoE+ 10/100/1000Base-T and 2 x SFP (mini-GBIC) Ports Layer 3 Managed Gigabit Ethernet Network Switch
  • HP OfficeConnect 1920-8G-PoE+ (180W) (JG922A#B2B) is a strong, no-nonsense fit for small clinics or studios that need a few powered ports without a big rack. It suits small offices, retail locations and branch sites that need to power a modest number of APs, cameras or VoIP phones, plus home labs where PoE simplifies cabling without justifying an enterprise-class switch. Port-wise, it offers 10 total network ports, laid out as 8xGigabit EthernetPoE+,RJ-45 and 2xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. With PoE+ on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. Beyond the base ports, there's SFP (mini-GBIC) expansion for uplinks. Onboard flash storage of 32 (MB) keeps firmware and config backups local to the switch. On the compatibility side, it's desktop-friendly, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. GotoDirect ships this HP OfficeConnect switch as genuine stock with full warranty backing and fast delivery nationwide.
Technical Documents:
General Information:
Product Line OfficeConnect 1920
Model 1920-8G-PoE+ (180W)
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 8 x Gigabit Ethernet PoE+, RJ-45
  • 2 x Gigabit Ethernet SFP (mini-GBIC), Uplink
Total Number of Network Ports 10
Number of Expansion Slots 2
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 32 MB
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor
  • Standalone
  • Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 12.99 Inches
Depth 9.06 Inches
Weight 7.05 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 5 µs
  • 1000 Mb Latency: < 5 µs
  • Throughput: 14.8 Mpps (64-byte packets)
  • Routing/Switching capacity: 20 Gbps
  • Routing table size: 32 entries (IPv4), 32 entries (IPv6)
  • MAC address table size: 8192 entries
