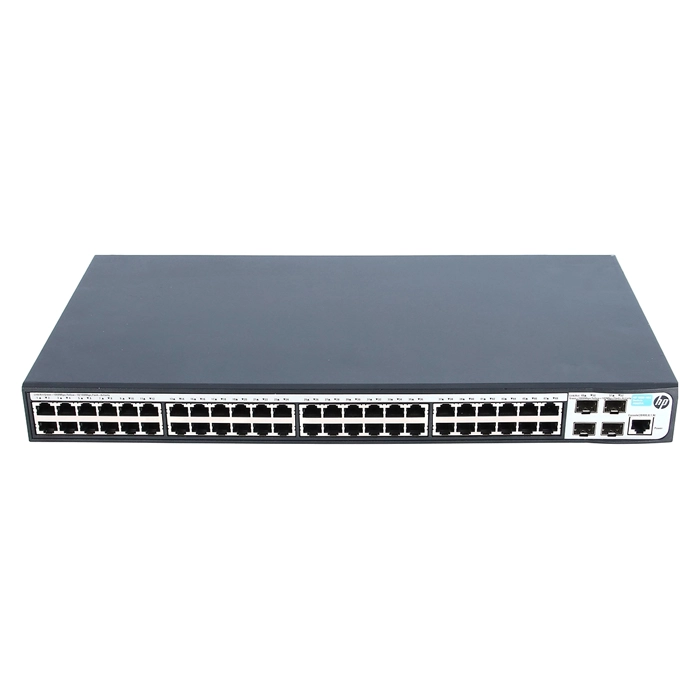

HP JG927A#ACF | OfficeConnect 1920 Series 1920-48G 48 x RJ-45 10/100/1000Base-T and 4 x SFP (mini-GBIC) Ports Layer 3 Managed Gigabit Ethernet Network Switch

Part No JG927A#ACF
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$307.52
$289.07
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JG927A#ACF | OfficeConnect 1920 Series 1920-48G 48 x RJ-45 10/100/1000Base-T and 4 x SFP (mini-GBIC) Ports Layer 3 Managed Gigabit Ethernet Network Switch
  • HP OfficeConnect 1920-48G (JG927A#ACF) is a solid pick for network cores and aggregation layers feeding busy server racks that don't want to overthink the network layer. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Wiring is handled by 52 total network ports, laid out as 48xGigabit EthernetRJ-45 and 4xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. It rounds this out with SFP (mini-GBIC) expansion for uplinks. A built-in 32 (MB) of flash storage holds firmware images and config backups on the switch itself. For installation, it's desktop-friendly, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. GotoDirect ships this HP OfficeConnect switch as genuine stock with full warranty backing and fast delivery nationwide.
Technical Documents:
General Information:
Product Line OfficeConnect 1920
Model 1920-48G
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x Gigabit Ethernet RJ-45
  • 4 x Gigabit Ethernet SFP (mini-GBIC), Uplink
Total Number of Network Ports 52
Number of Expansion Slots 2
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 32 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor
  • Standalone
  • Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.32 Inches
Depth 9.37 Inches
Weight 6.94 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 5 µs
  • 1000 Mb Latency: < 5 µs
  • Throughput: 77.4 Mpps (64-byte packets)
  • Routing/Switching capacity: 104 Gbps
  • Routing table size: 32 entries (IPv4), 32 entries (IPv6)
  • MAC address table size: 16384 entries
