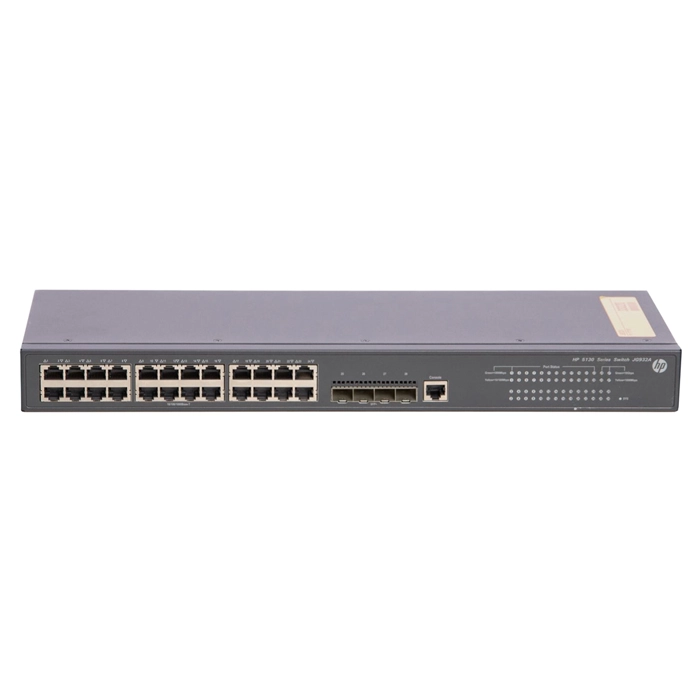

HP JG932A#B2E | FlexNetwork 5130 EI Series 5130 24G 4SFP+ EI 24 x 10/100/1000Base-T RJ-45 and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch

Part No JG932A#B2E
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$409.57
$385.00
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JG932A#B2E | FlexNetwork 5130 EI Series 5130 24G 4SFP+ EI 24 x 10/100/1000Base-T RJ-45 and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
  • HP FlexNetwork 5130 24G 4SFP+ EI (JG932A#B2E) is a strong, no-nonsense fit for organizations running virtualization clusters, NAS arrays or render farms that need low-latency, high-bandwidth links. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. It brings 28 total network ports, laid out as 24xGigabit EthernetRJ-45 and 4x10 Gigabit EthernetSFP+,Uplink/Stacking, topping out at 10GbE per port. Beyond the base ports, there's SFP+ expansion for uplinks. Onboard flash storage of 512 (MB) keeps firmware and config backups local to the switch. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. Buy the HP FlexNetwork 5130 24G 4SFP+ EI from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
General Information:
Product Line FlexNetwork 5130 EI
Model 5130 24G 4SFP+ EI
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet RJ-45
  • 4 x 10 Gigabit Ethernet SFP+, Uplink/Stacking
Total Number of Network Ports 28
Number of Expansion Slots 4
Expansion Slots Details SFP+
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 512 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.72 Inches
Width 17.32 Inches
Depth 6.3 Inches
Weight 11.02 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • WEEE
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • IPv6 Ready Certified
  • 1000 Mb Latency: < 5 µs
  • 10 Gbps Latency: < 3 µs
  • Throughput: 96 Mpps
  • Routing/Switching capacity: 128 Gbps
  • Routing table size: 512 entries (IPv4), 256 entries (IPv6)
  • MAC address table size: 16384 entries
