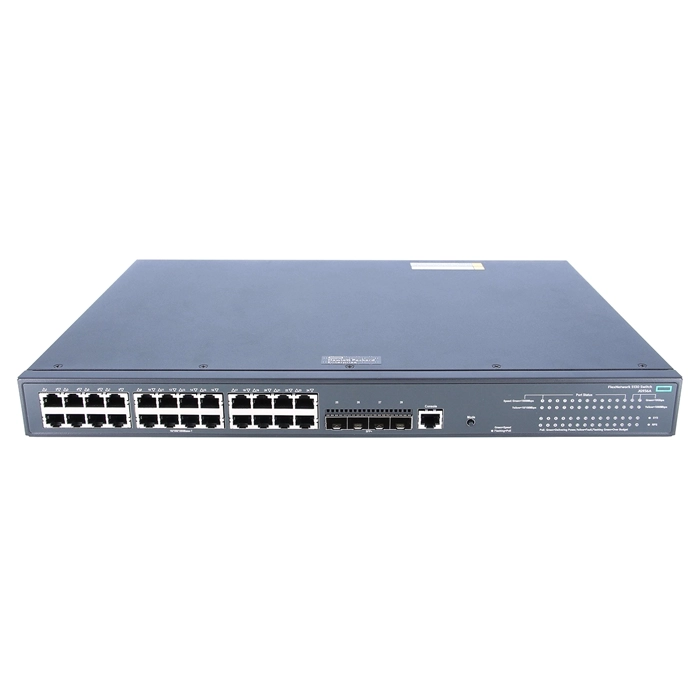

HP JG936AR#ACF | FlexNetwork 5130 EI Series 5130 24G PoE+ 4SFP+ (370W) EI 24 x 10/100/1000Base-T RJ-45 PoE+ and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch

Part No JG936AR#ACF
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$1,658.83
$1,559.30
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JG936AR#ACF | FlexNetwork 5130 EI Series 5130 24G PoE+ 4SFP+ (370W) EI 24 x 10/100/1000Base-T RJ-45 PoE+ and 4 x 10GbE SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
  • HP FlexNetwork 5130 24G PoE+ 4SFP+ (370W) EI (JG936AR#ACF) is a solid pick for enterprises rolling out PoE access points, IP cameras and phones across large floors that don't want to overthink the network layer. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. Port-wise, it offers 28 total network ports, laid out as 24xGigabit EthernetPoE+,RJ-45 and 4x10 Gigabit EthernetSFP+,Uplink/Stacking, topping out at 10GbE per port. It also adds SFP+ expansion for uplinks. Onboard flash storage of 512 (MB) keeps firmware and config backups local to the switch. Built-in PoE+ power delivery runs access points, IP cameras and VoIP phones straight off the switch, cutting down on wall adapters. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. It slots into a standard 19-inch rack in a 1U footprint, without any special hardware, runs on ac input power, and follows standard front-to-back airflow for predictable cooling. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect sources this HP FlexNetwork switch as a genuine, warranty-backed unit, with fast shipping across the US.
General Information:
Product Line FlexNetwork 5130 EI
Model 5130 24G PoE+ 4SFP+ (370W) EI
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet PoE+, RJ-45
  • 4 x 10 Gigabit Ethernet SFP+, Uplink/Stacking
Total Number of Network Ports 28
Number of Expansion Slots 4
Expansion Slots Details SFP+
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 512 MB
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.72 Inches
Width 17.32 Inches
Depth 11.81 Inches
Weight 17.64 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • WEEE
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • IPv6 Ready Certified
  • 1000 Mb Latency: < 5 µs
  • 10 Gbps Latency: < 3 µs
  • Throughput: 96 Mpps
  • Routing/Switching capacity: 128 Gbps
  • Routing table size: 512 entries (IPv4), 256 entries (IPv6)
  • MAC address table size: 16384 entries
