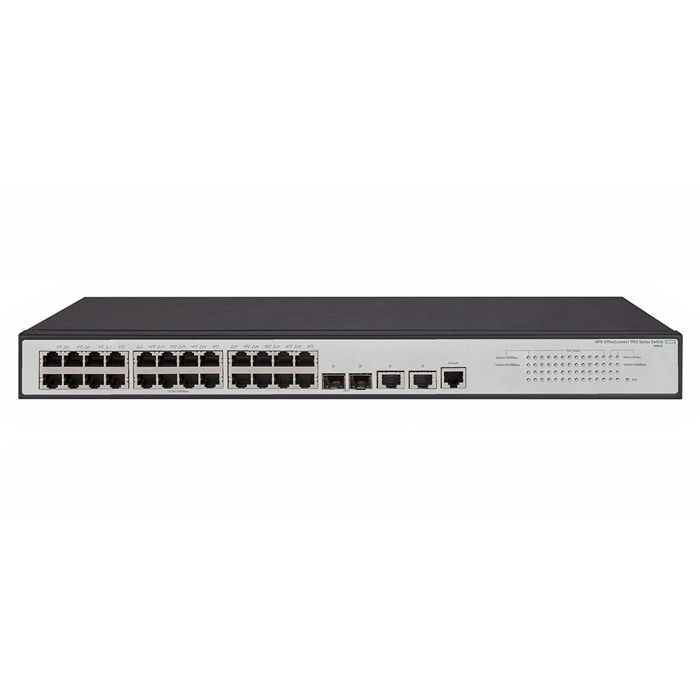

HP JG960A#B2C | OfficeConnect 1950 Series 1950-24G-2SFP+-2xGT 24 x 10/100/1000Base-T RJ-45 and 2 x Combo SFP+ 10GbE Ports Layer 3 Managed Gigabit Ethernet Network Switch

Part No JG960A#B2C
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$1,550.88
$1,457.83
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JG960A#B2C | OfficeConnect 1950 Series 1950-24G-2SFP+-2xGT 24 x 10/100/1000Base-T RJ-45 and 2 x Combo SFP+ 10GbE Ports Layer 3 Managed Gigabit Ethernet Network Switch
  • HP OfficeConnect 1950-24G-2SFP+-2XGT (JG960A#B2C) makes sense if you're shopping for network cores and aggregation layers feeding busy server racks. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. On the port side, you get 28 total network ports, laid out as 24xGigabit EthernetRJ-45 and 2x10 Gigabit EthernetRJ-45 and 2x10 Gigabit EthernetSFP+, topping out at 10GbE per port. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. On top of that, it has SFP+ expansion for uplinks. Onboard flash storage of 128 (MB) keeps firmware and config backups local to the switch. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and standard front-to-back airflow that lines up with typical rack airflow planning. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect sources this HP OfficeConnect switch as a genuine, warranty-backed unit, with fast shipping across the US.
Technical Documents:
General Information:
Product Line OfficeConnect 1950
Model 1950-24G-2SFP+-2XGT
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet RJ-45
  • 2 x 10 Gigabit Ethernet RJ-45
  • 2 x 10 Gigabit Ethernet SFP+
Total Number of Network Ports 28
Number of Expansion Slots 2
Expansion Slots Details SFP+
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 128 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.17 Inches
Depth 6.3 Inches
Weight 6.61 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • WEEE
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 5 µs
  • 1000 Mb Latency: < 5 µs
  • 10 Gbps Latency: < 1.5 µs
  • Throughput: Up to 95.2 Mpps (64-byte packets)
  • Routing/Switching capacity: 128 Gbps
  • Routing table size: 32 entries (IPv4), 32 entries (IPv6)
  • MAC address table size: 16384 entries
