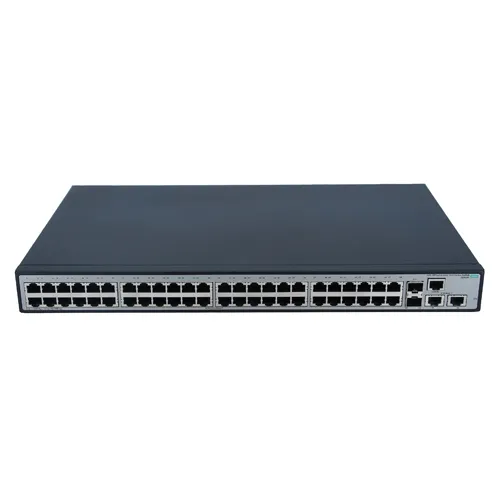

HP JG961A#B8X | OfficeConnect 1950 Series 1950-48G-2SFP+-2xGT 48 x 10/100/1000Base-T RJ-45 and 2 x Combo SFP+ 10GbE Ports Layer 3 Managed Gigabit Ethernet Network Switch

Part No JG961A#B8X
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$299.72
$281.74
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JG961A#B8X | OfficeConnect 1950 Series 1950-48G-2SFP+-2xGT 48 x 10/100/1000Base-T RJ-45 and 2 x Combo SFP+ 10GbE Ports Layer 3 Managed Gigabit Ethernet Network Switch
  • HP OfficeConnect 1950-48G-2SFP+-2XGT (JG961A#B8X) is a strong, no-nonsense fit for IT teams building out server, NAS and storage backbones. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Wiring is handled by 52 total network ports, laid out as 48xGigabit EthernetRJ-45 and 2x10 Gigabit EthernetRJ-45 and 2x10 Gigabit EthernetSFP+, topping out at 10GbE per port. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. On top of that, it has SFP+ expansion for uplinks. A built-in 128 (MB) of flash storage holds firmware images and config backups on the switch itself. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect sources this HP OfficeConnect switch as a genuine, warranty-backed unit, with fast shipping across the US.
Technical Documents:
General Information:
Product Line OfficeConnect 1950
Model 1950-48G-2SFP+-2XGT
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x Gigabit Ethernet RJ-45
  • 2 x 10 Gigabit Ethernet RJ-45
  • 2 x 10 Gigabit Ethernet SFP+
Total Number of Network Ports 52
Number of Expansion Slots 2
Expansion Slots Details SFP+
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 128 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.32 Inches
Depth 10.63 Inches
Weight 11.02 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • WEEE
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 5 µs
  • 1000 Mb Latency: < 5 µs
  • 10 Gbps Latency: < 1.5 µs
  • Throughput: Up to 130.9 Mpps (64-byte packets)
  • Routing/Switching capacity: 176 Gbps
  • Routing table size: 32 entries (IPv4), 32 entries (IPv6)
  • MAC address table size: 16384 entries
