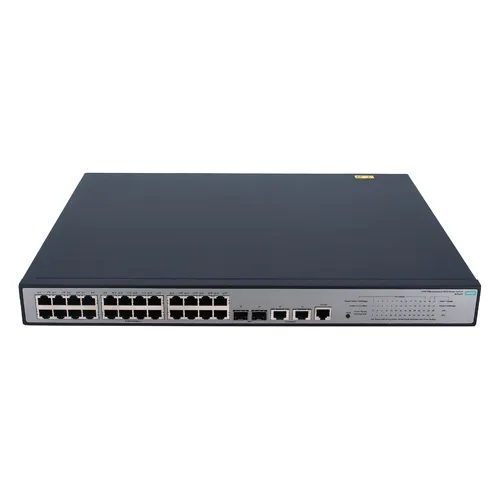

HP JG962A#AKL | OfficeConnect 1950 Series 1950-24G-2SFP+-2xGT-PoE+ 24 x 10/100/1000Base-T RJ-45 PoE+ and 2 x Combo SFP+ 10GbE Ports Layer 3 Managed Gigabit Ethernet Network Switch

Part No JG962A#AKL
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$2,598.33
$2,442.43
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JG962A#AKL | OfficeConnect 1950 Series 1950-24G-2SFP+-2xGT-PoE+ 24 x 10/100/1000Base-T RJ-45 PoE+ and 2 x Combo SFP+ 10GbE Ports Layer 3 Managed Gigabit Ethernet Network Switch
  • HP OfficeConnect 1950-24G-2SFP+-2XGT-PoE+ (JG962A#AKL) is the switch IT teams supporting IT teams standardizing wiring closets across a multi-building campus often turn to when they need something that just works. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. Port-wise, it offers 28 total network ports, laid out as 24xGigabit EthernetPoE+,RJ-45 and 2x10 Gigabit EthernetRJ-45 and 2x10 Gigabit EthernetSFP+, topping out at 10GbE per port. PoE+ support means powered endpoints - APs, cameras, phones - plug straight into the switch without extra adapters. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. It rounds this out with SFP+ expansion for uplinks. With 128 (MB) of onboard flash, firmware and configuration backups don't depend on a remote server. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air standard front-to-back airflow, so it fits cleanly next to existing gear. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. Buy the HP OfficeConnect 1950-24G-2SFP+-2XGT-PoE+ from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
Product Line OfficeConnect 1950
Model 1950-24G-2SFP+-2XGT-PoE+
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet PoE+, RJ-45
  • 2 x 10 Gigabit Ethernet RJ-45
  • 2 x 10 Gigabit Ethernet SFP+
Total Number of Network Ports 28
Number of Expansion Slots 2
Expansion Slots Details SFP+
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 128 MB
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.32 Inches
Depth 14.17 Inches
Weight 13.23 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • WEEE
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 5 µs
  • 1000 Mb Latency: < 5 µs
  • 10 Gbps Latency: < 1.5 µs
  • Throughput: Up to 95.2 Mpps (64-byte packets)
  • Routing/Switching capacity: 128 Gbps
  • Routing table size: 32 entries (IPv4), 32 entries (IPv6)
  • MAC address table size: 16384 entries
