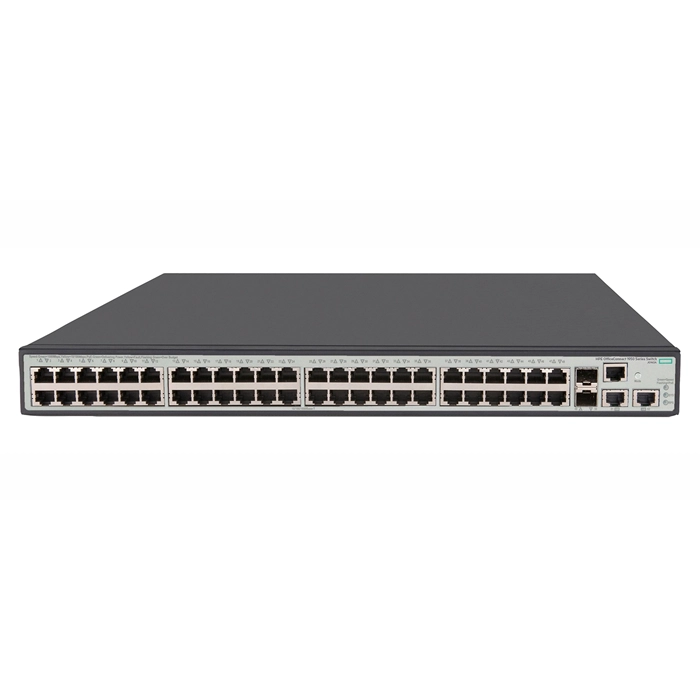

HP JG963A#B8X | OfficeConnect 1950 Series 1950-48G-2SFP+-2xGT-PoE+ 48 x 10/100/1000Base-T RJ-45 PoE+ and 2 x Combo SFP+ 10GbE Ports Layer 3 Managed Gigabit Ethernet Network Switch

Part No JG963A#B8X
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$417.76
$392.69
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JG963A#B8X | OfficeConnect 1950 Series 1950-48G-2SFP+-2xGT-PoE+ 48 x 10/100/1000Base-T RJ-45 PoE+ and 2 x Combo SFP+ 10GbE Ports Layer 3 Managed Gigabit Ethernet Network Switch
  • HP OfficeConnect 1950-48G-2SFP+-2XGT-PoE+ (JG963A#B8X) is a solid pick for IT teams standardizing wiring closets across a multi-building campus that don't want to overthink the network layer. It's a good match for IT teams standardizing wiring closets across a campus, schools and offices deploying wireless APs at scale, and security teams running IP camera networks that need power and data on one cable. Facilities with virtualization or NAS traffic riding the same switch will also benefit from the extra headroom. Wiring is handled by 52 total network ports, laid out as 48xGigabit EthernetPoE+,RJ-45 and 2x10 Gigabit EthernetRJ-45 and 2x10 Gigabit EthernetSFP+, topping out at 10GbE per port. It rounds this out with SFP+ expansion for uplinks. Onboard flash storage of 128 (MB) keeps firmware and config backups local to the switch. With PoE+ on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air standard front-to-back airflow, so it fits cleanly next to existing gear. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. Buy the HP OfficeConnect 1950-48G-2SFP+-2XGT-PoE+ from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
Product Line OfficeConnect 1950
Model 1950-48G-2SFP+-2XGT-PoE+
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x Gigabit Ethernet PoE+, RJ-45
  • 2 x 10 Gigabit Ethernet RJ-45
  • 2 x 10 Gigabit Ethernet SFP+
Total Number of Network Ports 52
Number of Expansion Slots 2
Expansion Slots Details SFP+
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 128 MB
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.32 Inches
Depth 16.54 Inches
Weight 15.43 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • WEEE
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 5 µs
  • 1000 Mb Latency: < 5 µs
  • 10 Gbps Latency: < 1.5 µs
  • Throughput: Up to 130.9 Mpps (64-byte packets)
  • Routing/Switching capacity: 176 Gbps
  • Routing table size: 32 entries (IPv4), 32 entries (IPv6)
  • MAC address table size: 16384 entries
