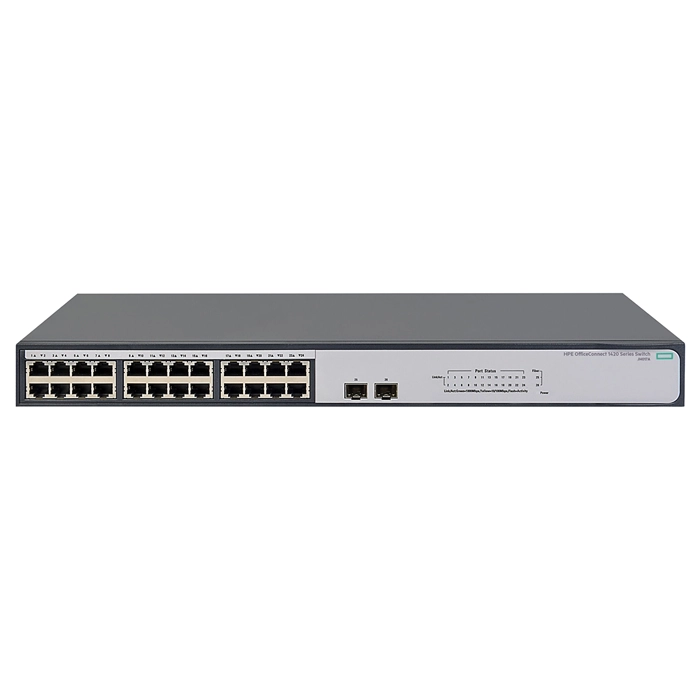

HP JH017A#ACF | OfficeConnect 1420 Series 1420-24G-2SFP 24 x 10/100/1000Base-T RJ-45 and 2 x SFP (mini-GBIC) Ports Layer 2 Unmanaged Gigabit Ethernet Network Switch

Part No JH017A#ACF
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$322.85
$303.48
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JH017A#ACF | OfficeConnect 1420 Series 1420-24G-2SFP 24 x 10/100/1000Base-T RJ-45 and 2 x SFP (mini-GBIC) Ports Layer 2 Unmanaged Gigabit Ethernet Network Switch
  • HP OfficeConnect 1420-24G-2SFP (JH017A#ACF) makes sense if you're shopping for small networks where simple, unmanaged switching is all that's required. Home offices, small businesses and workgroups that just want more reliable ports - without VLANs or a CLI to learn - are the target here. Plug it in and go. Port-wise, it offers 26 total network ports, laid out as 24xGigabit EthernetRJ-45 and 2xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. Layer 2 operation keeps the design lean - MAC-table forwarding and VLANs, without routing overhead. On top of that, it has SFP (mini-GBIC) expansion for uplinks. Onboard flash storage of 1 (MB) keeps firmware and config backups local to the switch. Mounting is straightforward: desktop-friendly, in a 1U footprint, standard 19-inch rails, ac input power, and standard front-to-back airflow that lines up with typical rack airflow planning. Also, twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. GotoDirect ships this HP OfficeConnect switch as genuine stock with full warranty backing and fast delivery nationwide.
Technical Documents:
General Information:
Product Line OfficeConnect 1420
Model 1420-24G-2SFP
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet RJ-45
  • 2 x Gigabit Ethernet SFP (mini-GBIC), Uplink
Total Number of Network Ports 26
Number of Expansion Slots 2
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable No
Layer Supported 2
Flash Storage Memory 1 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor
  • Standalone
  • Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.32 Inches
Depth 6.81 Inches
Weight 4.85 lbs
Compliance Standards:
Green Compliance FCC
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 8 µs (LIFO 64-byte packets)
  • 1000 Mb Latency: < 16 µs (LIFO 64-byte packets)
  • Throughput: Up to 38.7 Mpps (64-byte packets)
  • Switching capacity: 52 Gbps
  • MAC address table size: 8192 entries
