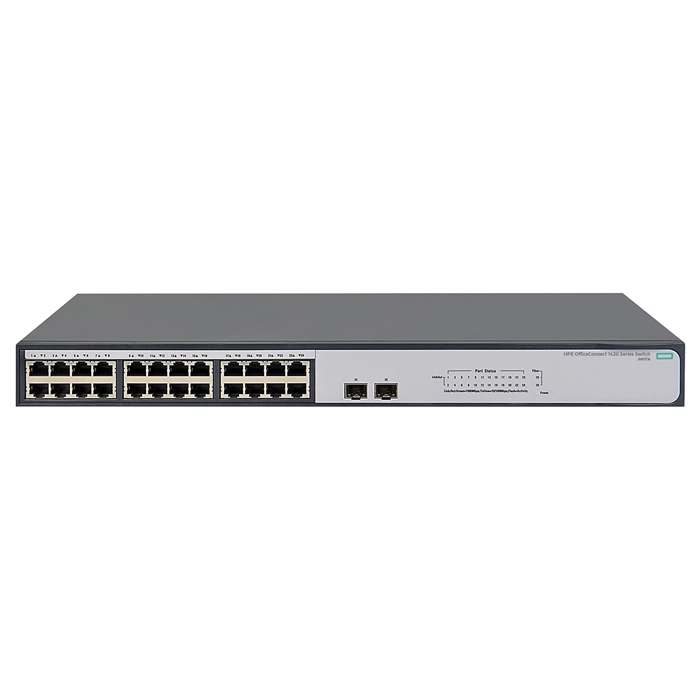

HP JH017A#AKL | OfficeConnect 1420 Series 1420-24G-2SFP 24 x 10/100/1000Base-T RJ-45 and 2 x SFP (mini-GBIC) Ports Layer 2 Unmanaged Gigabit Ethernet Network Switch

Part No JH017A#AKL
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$322.85
$303.48
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JH017A#AKL | OfficeConnect 1420 Series 1420-24G-2SFP 24 x 10/100/1000Base-T RJ-45 and 2 x SFP (mini-GBIC) Ports Layer 2 Unmanaged Gigabit Ethernet Network Switch
  • HP OfficeConnect 1420-24G-2SFP (JH017A#AKL) shows up a lot in shortlists for home offices and small businesses that just need reliable plug-and-play connectivity, and for good reason. It's aimed at home offices, small businesses and workgroups that want extra reliable ports without the complexity of VLANs or CLI configuration - plug it in and it works. Wiring is handled by 26 total network ports, laid out as 24xGigabit EthernetRJ-45 and 2xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. It rounds this out with SFP (mini-GBIC) expansion for uplinks. A built-in 1 (MB) of flash storage holds firmware images and config backups on the switch itself. Layer 2 operation keeps the design lean - MAC-table forwarding and VLANs, without routing overhead. On the compatibility side, it's desktop-friendly, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. When you order the HP OfficeConnect 1420-24G-2SFP through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.
Technical Documents:
General Information:
Product Line OfficeConnect 1420
Model 1420-24G-2SFP
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet RJ-45
  • 2 x Gigabit Ethernet SFP (mini-GBIC), Uplink
Total Number of Network Ports 26
Number of Expansion Slots 2
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable No
Layer Supported 2
Flash Storage Memory 1 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor
  • Standalone
  • Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.32 Inches
Depth 6.81 Inches
Weight 4.85 lbs
Compliance Standards:
Green Compliance FCC
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 8 µs (LIFO 64-byte packets)
  • 1000 Mb Latency: < 16 µs (LIFO 64-byte packets)
  • Throughput: Up to 38.7 Mpps (64-byte packets)
  • Switching capacity: 52 Gbps
  • MAC address table size: 8192 entries
