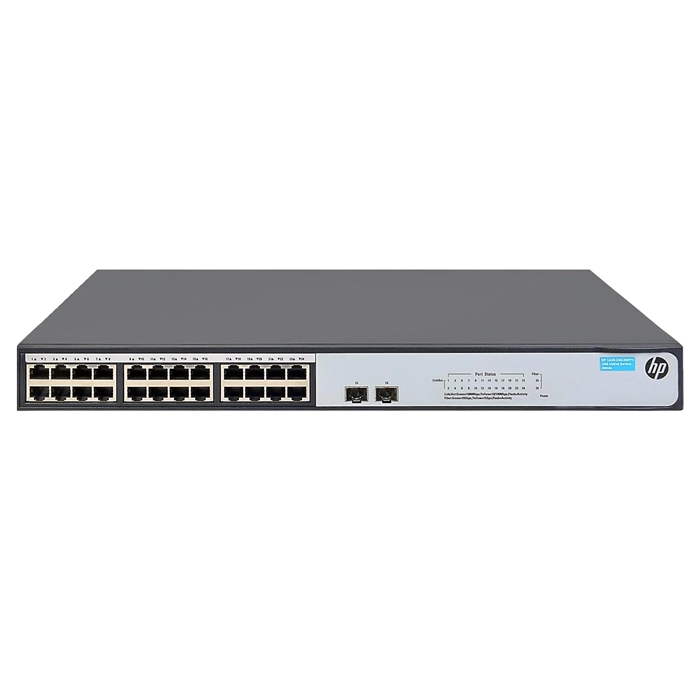

HP JH018A#AKL | OfficeConnect 1420 Series 1420-24G-2SFP+ 10G Uplink 24 x 10/100/1000Base-T RJ-45 and 2 x 10GbE SFP+ Ports Layer 2 Unmanaged Gigabit Ethernet Network Switch

Part No JH018A#AKL
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$551.88
$518.77
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JH018A#AKL | OfficeConnect 1420 Series 1420-24G-2SFP+ 10G Uplink 24 x 10/100/1000Base-T RJ-45 and 2 x 10GbE SFP+ Ports Layer 2 Unmanaged Gigabit Ethernet Network Switch
  • HP OfficeConnect 1420-24G-2SFP+ 10G Uplink (JH018A#AKL) is a strong, no-nonsense fit for small retail counters or back offices needing a couple of extra ports. It's aimed at home offices, small businesses and workgroups that want extra reliable ports without the complexity of VLANs or CLI configuration - plug it in and it works. Wiring is handled by 26 total network ports, laid out as 24xGigabit EthernetRJ-45 and 2x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. Beyond the base ports, there's SFP+ expansion for uplinks. With 8 (MB) of onboard flash, firmware and configuration backups don't depend on a remote server. Layer 2 operation keeps the design lean - MAC-table forwarding and VLANs, without routing overhead. On the compatibility side, it's desktop-friendly, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect ships this HP OfficeConnect switch as genuine stock with full warranty backing and fast delivery nationwide.
Technical Documents:
General Information:
Product Line OfficeConnect 1420
Model 1420-24G-2SFP+ 10G Uplink
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet RJ-45
  • 2 x 10 Gigabit Ethernet SFP+, Uplink
Total Number of Network Ports 26
Number of Expansion Slots 2
Expansion Slots Details SFP+
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable No
Layer Supported 2
Flash Storage Memory 8 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor
  • Standalone
  • Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.32 Inches
Depth 9.37 Inches
Weight 6.39 lbs
Compliance Standards:
Green Compliance FCC
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 8 µs (LIFO 64-byte packets)
  • 1000 Mb Latency: < 16 µs (LIFO 64-byte packets)
  • Throughput: Up to 65.5 Mpps (64-byte packets)
  • Switching capacity: 88 Gbps
  • MAC address table size: 16384 entries
