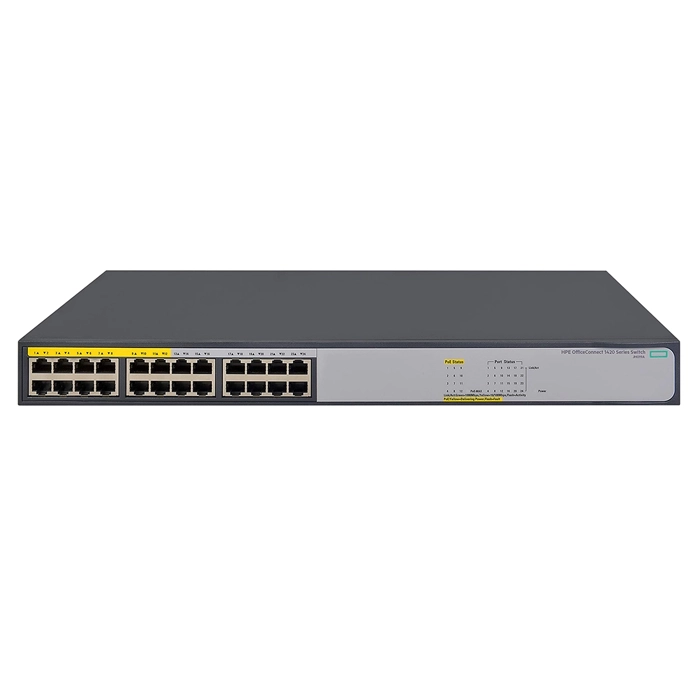

HP JH019A#B8X | OfficeConnect 1420 Series 1420-24G-PoE+ (124W) 24 x 10/100/1000Base-T RJ-45 PoE+ Ports Layer 2 Unmanaged Gigabit Ethernet Network Switch

Part No JH019A#B8X
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$1,550.88
$1,457.83
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JH019A#B8X | OfficeConnect 1420 Series 1420-24G-PoE+ (124W) 24 x 10/100/1000Base-T RJ-45 PoE+ Ports Layer 2 Unmanaged Gigabit Ethernet Network Switch
  • HP OfficeConnect 1420-24G-PoE+ (124W) (JH019A#B8X) is a strong, no-nonsense fit for schools and universities powering classroom APs and phones at scale. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. It brings 24 total network ports, laid out as 24xGigabit EthernetPoE+,RJ-45, topping out at Gigabit (1GbE) per port. Built-in PoE+ power delivery runs access points, IP cameras and VoIP phones straight off the switch, cutting down on wall adapters. As a Layer 2 switch, it focuses on fast MAC-address forwarding and VLAN segmentation rather than routing. Beyond the base ports, there's a fixed-port design that keeps configuration simple. With 1 (MB) of onboard flash, firmware and configuration backups don't depend on a remote server. On the compatibility side, it's desktop-friendly, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, twisted pair media keeps it compatible with existing cabling. Buy the HP OfficeConnect 1420-24G-PoE+ (124W) from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
Product Line OfficeConnect 1420
Model 1420-24G-PoE+ (124W)
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots 24 x Gigabit Ethernet PoE+, RJ-45
Total Number of Network Ports 24
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T
Media Standard Twisted Pair
Manageable No
Layer Supported 2
Flash Storage Memory 1 MB
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor
  • Standalone
  • Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.32 Inches
Depth 9.37 Inches
Weight 7.28 lbs
Compliance Standards:
Green Compliance FCC
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 8 µs (LIFO 64-byte packets)
  • 1000 Mb Latency: < 16 µs (LIFO 64-byte packets)
  • Throughput: Up to 35.7 Mpps (64-byte packets)
  • Switching capacity: 48 Gbps
  • MAC address table size: 8192 entries
