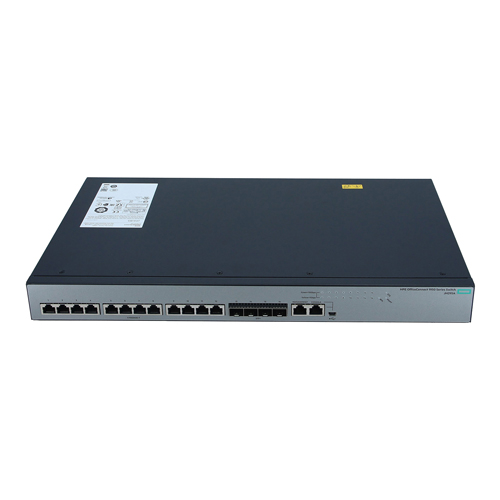

HP JH295A#AKL | OfficeConnect 1950 Series 1950-12XGT-4SFP+ 12 x 10GBase-T and 4 x SFP+ 10GbE Ports Layer 3 Managed Gigabit Ethernet Network Switch

Part No JH295A#AKL
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$1,012.80
$952.03
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JH295A#AKL | OfficeConnect 1950 Series 1950-12XGT-4SFP+ 12 x 10GBase-T and 4 x SFP+ 10GbE Ports Layer 3 Managed Gigabit Ethernet Network Switch
  • HP OfficeConnect 1950-12XGT-4SFP+ (JH295A#AKL) is the switch IT teams supporting teams scaling out AI/ML training clusters that need fast east-west links often turn to when they need something that just works. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. It brings 16 total network ports, laid out as 12x10 Gigabit EthernetRJ-45 and 4x10 Gigabit EthernetSFP+, topping out at 10GbE per port. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. On top of that, it has SFP+ expansion for uplinks. A built-in 512 (MB) of flash storage holds firmware images and config backups on the switch itself. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. Buy the HP OfficeConnect 1950-12XGT-4SFP+ from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
Product Line OfficeConnect 1950
Model 1950-12XGT-4SFP+
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 12 x 10 Gigabit Ethernet RJ-45
  • 4 x 10 Gigabit Ethernet SFP+
Total Number of Network Ports 16
Number of Expansion Slots 4
Expansion Slots Details SFP+
Modular Expansion Yes
Ethernet Technology 10 Gigabit Ethernet
Network Technology
  • 10GBase-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 512 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.32 Inches
Depth 6.3 Inches
Weight 8.07 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • WEEE
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 5 µs
  • 1000 Mb Latency: < 5 µs
  • 10 Gbps Latency: < 1.5 µs
  • Throughput: up to 238 Mpps (64-byte packets)
  • Routing/Switching capacity: 320 Gbps
  • Routing table size: 512 entries (IPv4), 256 entries (IPv6)
  • MAC address table size: 16384 entries
