Image may differ from original

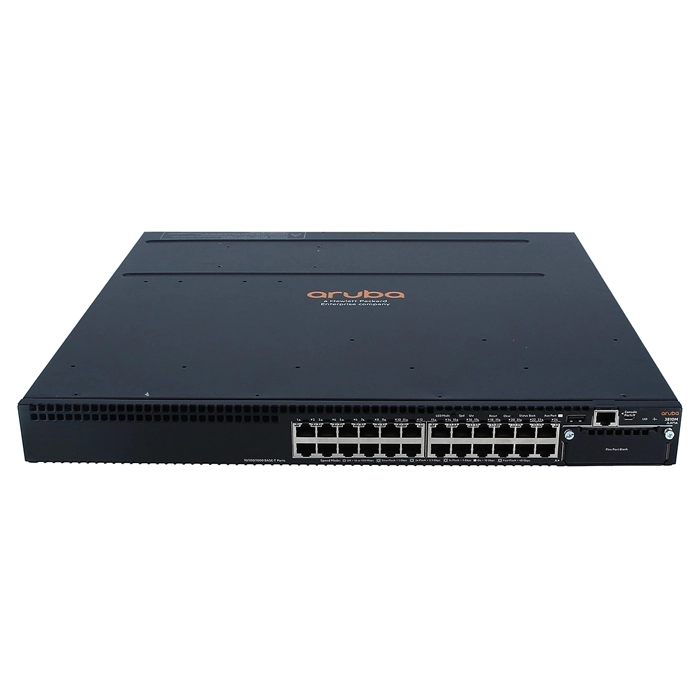

HP JL071A#0D1 | Aruba 3810 Series 3810M 24G 1‑slot 24 x 10/100/1000Base-T RJ-45 and 1 x Expansion Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
$378.68
$355.96Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL071A#0D1 | Aruba 3810 Series 3810M 24G 1‑slot 24 x 10/100/1000Base-T RJ-45 and 1 x Expansion Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
- HP Aruba 3810M 24G 1‑slot (JL071A#0D1) makes sense if you're shopping for network cores and aggregation layers feeding busy server racks. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Wiring is handled by 24 total network ports, laid out as 24xGigabit EthernetRJ-45 and 1xExpansion Module and 1xStacking Module, topping out at Gigabit (1GbE) per port. Beyond the base ports, there's Stacking Module,Expansion Module expansion for uplinks and stacking so multiple units run as one logical switch. Onboard flash storage of 1 (GB) keeps firmware and config backups local to the switch. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air front-and-side-to-back airflow, so it fits cleanly next to existing gear. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair media over Stacking Module,Expansion Module covers both copper and fiber runs. GotoDirect sources this HP Aruba switch as a genuine, warranty-backed unit, with fast shipping across the US.
Technical Documents:
General Information:
| Product Line | 3810 |
|---|---|
| Model | 3810M 24G 1‑slot |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 24 |
| Number of Expansion Slots | 2 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Media Standard | Twisted Pair |
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Stacking Port | Yes |
| Flash Storage Memory | 1 GB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-and-side-to-back AirFlow |
| Height | 1.73 Inches |
| Width | 17.42 Inches |
| Depth | 16.98 Inches |
| Weight | 12.76 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
