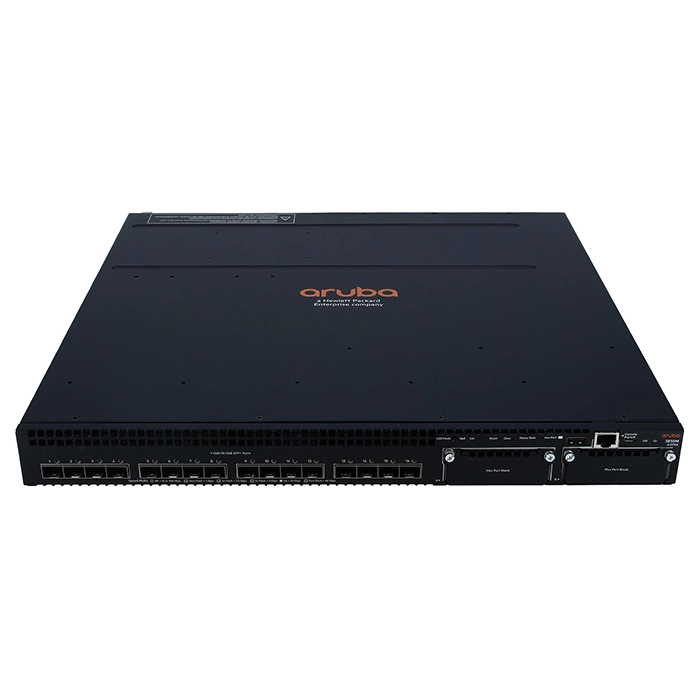

HP JL075AR | Aruba 3810 Series 3810M 16SFP+ 2‑slot 16 x 10GbE SFP+ and 2 x Expansion Module Slot Layer 3 Managed Gigabit Ethernet Network Switch

Part No JL075AR
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$5,347.83
$5,026.96
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL075AR | Aruba 3810 Series 3810M 16SFP+ 2‑slot 16 x 10GbE SFP+ and 2 x Expansion Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
  • HP Aruba 3810M 16SFP+ 2‑slot (JL075AR) makes sense if you're shopping for organizations running virtualization clusters, NAS arrays or render farms that need low-latency, high-bandwidth links. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Port-wise, it offers 16 total network ports, laid out as 16x10 Gigabit EthernetSFP+ and 1xExpansion Module and 1xStacking Module, topping out at 10GbE per port. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. It rounds this out with SFP+,Stacking Module,Expansion Module expansion for uplinks and stacking so multiple units run as one logical switch. Onboard flash storage of 1 (GB) keeps firmware and config backups local to the switch. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air front-and-side-to-back airflow, so it fits cleanly next to existing gear. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over SFP+,Stacking Module,Expansion Module covers both copper and fiber runs. When you order the HP Aruba 3810M 16SFP+ 2‑slot through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.
  • UPC: 190017074726
General Information:
Product Line 3810
Model 3810M 16SFP+ 2‑slot
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 16 x 10 Gigabit Ethernet SFP+
  • 1 x Expansion Module
  • 1 x Stacking Module
Total Number of Network Ports 16
Number of Expansion Slots 19
Expansion Slots Details
  • SFP+
  • Stacking Module
  • Expansion Module
Modular Expansion Yes
Ethernet Technology 10 Gigabit Ethernet
Network Technology 10GBase-X
Media Standard Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Stacking Port Yes
Flash Storage Memory 1 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Front-and-side-to-back AirFlow
Height 1.73 Inches
Width 17.42 Inches
Depth 16.98 Inches
Weight 13.28 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • IPv6 Ready Certified
  • 1000 Mb latency: < 2.8 µs (FIFO 64‑byte packets)
  • 10 Gbps latency: < 1.8 µs (FIFO 64‑byte packets)
  • 40 Gbps latency: < 1.5 µs (FIFO 64‑byte packets)
  • Throughput: Up to 285.7 Mpps (64‑byte packets)
  • Routing/switching capacity: 480 Gbps
  • Switch fabric speed: 508 Gbps
  • Routing table size: 10000 entries (IPv4), 5000 entries (IPv6)
  • MAC address table size: 64000 entries
