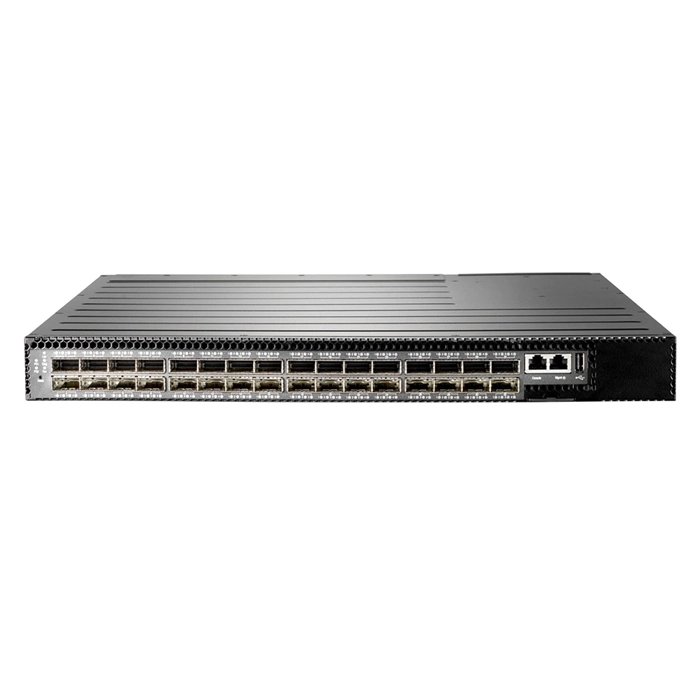

HP JL114A | Altoline 6940 Series 6940 32QSFP+ 32 x 40GbE QSFP+ Ports PPC ONIE AC Front-to-Back Airflow Layer 3 Managed Switch

Part No JL114A
Manufacturer HP
Condition Refurbished
Availability Call For Price
Call For Price

Speak with our team for current pricing and availability.

Call Now +1 (888) 203 - 4073
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL114A | Altoline 6940 Series 6940 32QSFP+ 32 x 40GbE QSFP+ Ports PPC ONIE AC Front-to-Back Airflow Layer 3 Managed Switch
  • HP Altoline 6940 32QSFP+ (JL114A) is built to handle network cores and aggregation layers feeding busy server racks without drama. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Port-wise, it offers 32 total network ports, laid out as 32x40 Gigabit EthernetQSFP+, topping out at 40GbE per port. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. Beyond the base ports, there's QSFP+ expansion for uplinks. Onboard flash storage of 8 (GB) keeps firmware and config backups local to the switch. It slots into a standard 19-inch rack in a 1U footprint, without any special hardware, runs on ac input power, and follows front-to-rear airflow for predictable cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over QSFP+ covers both copper and fiber runs. GotoDirect stocks the HP Altoline 6940 32QSFP+ as genuine, warranty-covered hardware, with fast delivery across the US.
General Information:
Product Line Altoline 6940
Model 6940 32QSFP+
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots 32 x 40 Gigabit Ethernet QSFP+
Total Number of Network Ports 32
Number of Expansion Slots 32
Expansion Slots Details QSFP+
Modular Expansion Yes
Ethernet Technology 40 Gigabit Ethernet
Network Technology 40GBase-X
Media Standard Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Flash Storage Memory 8 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Front-to-Rear AirFlow
Height 1.72 Inches
Width 17.32 Inches
Depth 18.5 Inches
Weight 8.4 kg
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 40 Gbps Latency: > .6 µs
  • Throughput up to: 1440 Mpps
  • Routing/Switching capacity: 2560 Gbps
  • Routing table size: 64000 entries (IPv4), 20000 entries (IPv6)
  • MAC address table size: 320000 entries
