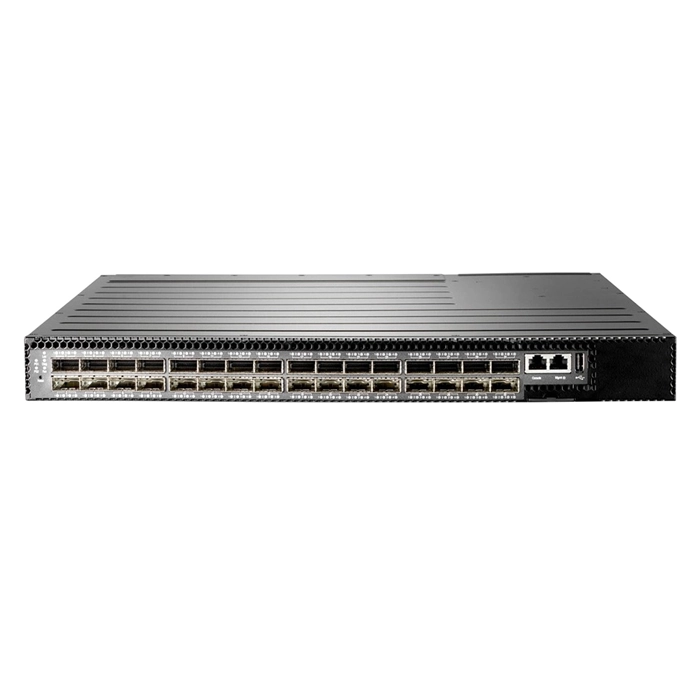

HP JL115A | Altoline 6940 Series 6940 32QSFP+ 32 x 40GbE QSFP+ Ports PPC ONIE AC Back-to-Front Airflow Layer 3 Managed Switch

Part No JL115A
Manufacturer HP
Condition Refurbished
Availability Call For Price
Call For Price

Speak with our team for current pricing and availability.

Call Now +1 (888) 203 - 4073
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL115A | Altoline 6940 Series 6940 32QSFP+ 32 x 40GbE QSFP+ Ports PPC ONIE AC Back-to-Front Airflow Layer 3 Managed Switch
  • HP Altoline 6940 32QSFP+ (JL115A) is a solid pick for organizations running virtualization clusters, NAS arrays or render farms that need low-latency, high-bandwidth links that don't want to overthink the network layer. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Port-wise, it offers 32 total network ports, laid out as 32x40 Gigabit EthernetQSFP+, topping out at 40GbE per port. On top of that, it has QSFP+ expansion for uplinks. Onboard flash storage of 8 (GB) keeps firmware and config backups local to the switch. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses rear-to-front airflow to match common data-center airflow layouts. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over QSFP+ covers both copper and fiber runs. Buy the HP Altoline 6940 32QSFP+ from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
General Information:
Product Line Altoline 6940
Model 6940 32QSFP+
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots 32 x 40 Gigabit Ethernet QSFP+
Total Number of Network Ports 32
Number of Expansion Slots 32
Expansion Slots Details QSFP+
Modular Expansion Yes
Ethernet Technology 40 Gigabit Ethernet
Network Technology 40GBase-X
Media Standard Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Flash Storage Memory 8 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Rear-to-Front AirFlow
Height 1.72 Inches
Width 17.32 Inches
Depth 18.5 Inches
Weight 8.4 kg
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 40 Gbps Latency: > .6 µs
  • Throughput up to: 1440 Mpps
  • Routing/Switching capacity: 2560 Gbps
  • Routing table size: 64000 entries (IPv4), 20000 entries (IPv6)
  • MAC address table size: 320000 entries
