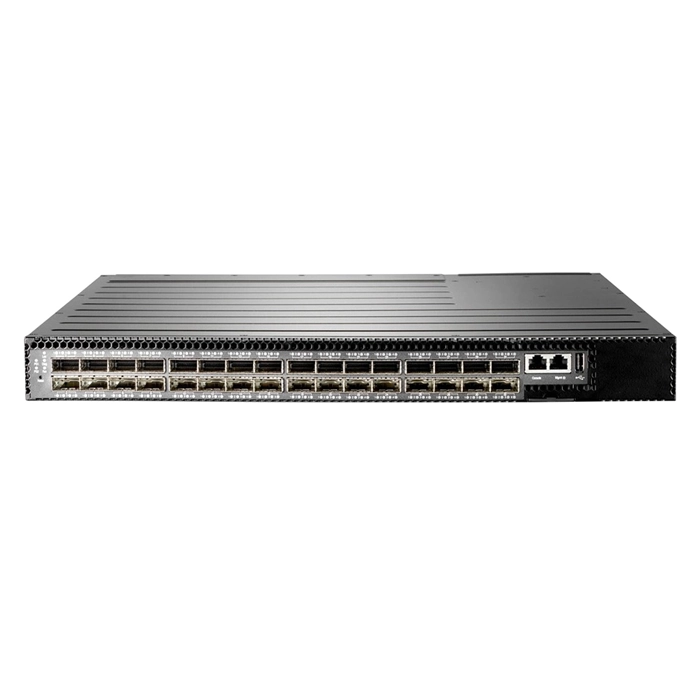

HP JL165A#B2B | Altoline 6940 Series 6940 32QSFP+ 32 x 40GbE QSFP+ Ports x86 ONIE AC Front-to-Back Airflow Layer 3 Managed Switch

Part No JL165A#B2B
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$5,218.75
$5,010.00
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL165A#B2B | Altoline 6940 Series 6940 32QSFP+ 32 x 40GbE QSFP+ Ports x86 ONIE AC Front-to-Back Airflow Layer 3 Managed Switch
  • HP Altoline 6940 32QSFP+ (JL165A#B2B) is built to handle data centers, virtualization hosts and server rooms that need high east-west throughput without drama. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Wiring is handled by 32 total network ports, laid out as 32x40 Gigabit EthernetQSFP+, topping out at 40GbE per port. Beyond the base ports, there's QSFP+ expansion for uplinks. Onboard flash storage of 8 (GB) keeps firmware and config backups local to the switch. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air front-to-rear airflow for straightforward rack cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over QSFP+ covers both copper and fiber runs. GotoDirect ships this HP Altoline switch as genuine stock with full warranty backing and fast delivery nationwide.
General Information:
Product Line Altoline 6940
Model 6940 32QSFP+
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots 32 x 40 Gigabit Ethernet QSFP+
Total Number of Network Ports 32
Number of Expansion Slots 32
Expansion Slots Details QSFP+
Modular Expansion Yes
Ethernet Technology 40 Gigabit Ethernet
Network Technology 40GBase-X
Media Standard Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Flash Storage Memory 8 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Front-to-Rear AirFlow
Height 1.72 Inches
Width 17.32 Inches
Depth 18.5 Inches
Weight 8.4 kg
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 40 Gbps Latency: > .6 µs
  • Throughput up to: 1440 Mpps
  • Routing/Switching capacity: 2560 Gbps
  • Routing table size: 64000 entries (IPv4), 20000 entries (IPv6)
  • MAC address table size: 320000 entries
