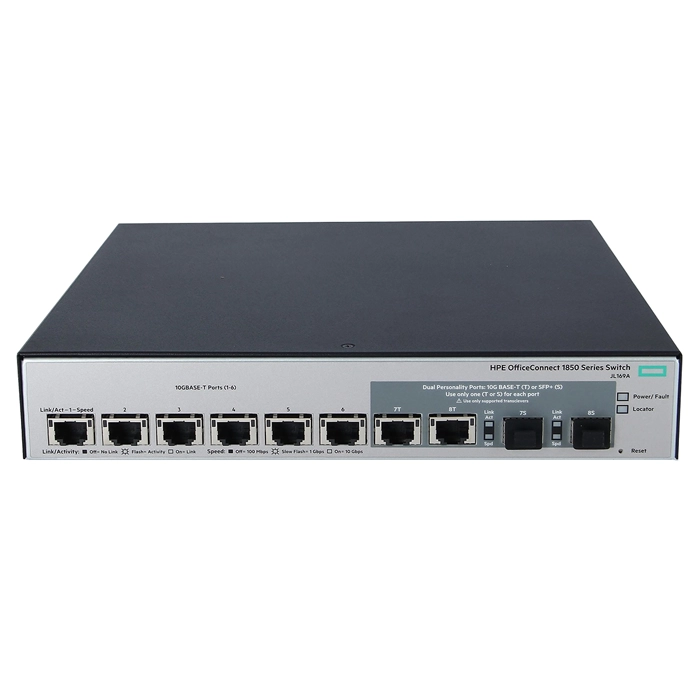

HP JL169A#B2C | OfficeConnect 1850 Series 1850-6XGT-2XGT/SPF+ 6 x 1/10GBASE-T RJ-45 and 2 x Combo SFP+ 10GbE Ports Layer 2 Managed Gigabit Ethernet Network Switch

Part No JL169A#B2C
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$828.97
$779.23
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL169A#B2C | OfficeConnect 1850 Series 1850-6XGT-2XGT/SPF+ 6 x 1/10GBASE-T RJ-45 and 2 x Combo SFP+ 10GbE Ports Layer 2 Managed Gigabit Ethernet Network Switch
  • HP OfficeConnect 1850-6XGT-2XGT/SPF+ (JL169A#B2C) makes sense if you're shopping for data centers, virtualization hosts and server rooms that need high east-west throughput. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. It brings 10 total network ports, laid out as 8x10 Gigabit EthernetRJ-45 and 2x10 Gigabit EthernetSFP+, topping out at 10GbE per port. Layer 2 operation keeps the design lean - MAC-table forwarding and VLANs, without routing overhead. Beyond the base ports, there's SFP+ expansion for uplinks. Onboard flash storage of 128 (MB) keeps firmware and config backups local to the switch. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect ships this HP OfficeConnect switch as genuine stock with full warranty backing and fast delivery nationwide.
Technical Documents:
General Information:
Product Line OfficeConnect 1850
Model 1850-6XGT-2XGT/SPF+
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 8 x 10 Gigabit Ethernet RJ-45
  • 2 x 10 Gigabit Ethernet SFP+
Total Number of Network Ports 10
Number of Expansion Slots 2
Expansion Slots Details SFP+
Modular Expansion Yes
Ethernet Technology 10 Gigabit Ethernet
Network Technology
  • 10GBase-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 2
Flash Storage Memory 128 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 9.96 Inches
Depth 10.26 Inches
Weight 3.84 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 7.6 µs (64-byte packets)
  • 1000 Mb Latency: < 3.6 µs (64-byte packets)
  • 10 Gbps Latency: < 3.3 µs (64-byte packets)
  • Throughput: Up to 119 Mpps
  • Switching capacity: 160 Gbps
  • MAC address table size: 16000 entries
