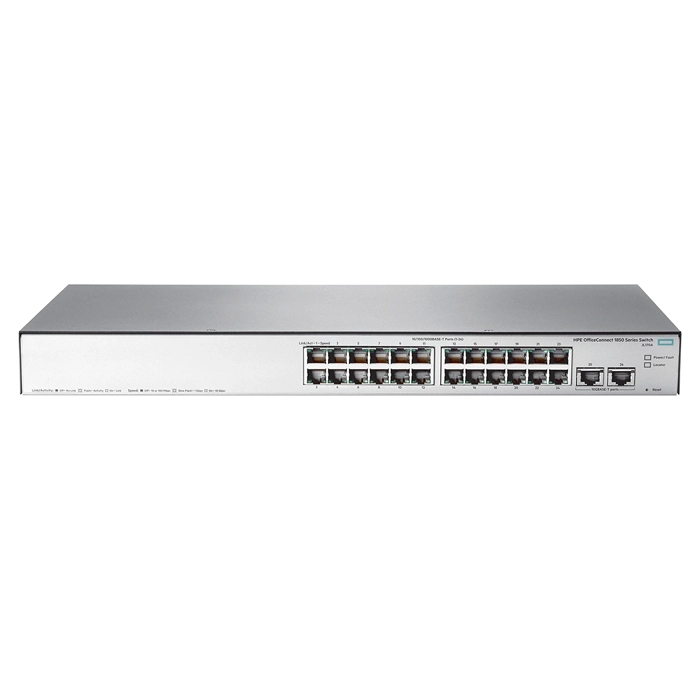

HP JL170A#ACF | OfficeConnect 1850 Series 1850-24G-2XGT 24 x 10/100/1000Base-T RJ-45 and 2 x 10GBase-T RJ-45 Ports Layer 2 Managed Gigabit Ethernet Network Switch

Part No JL170A#ACF
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$1,244.06
$1,169.42
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL170A#ACF | OfficeConnect 1850 Series 1850-24G-2XGT 24 x 10/100/1000Base-T RJ-45 and 2 x 10GBase-T RJ-45 Ports Layer 2 Managed Gigabit Ethernet Network Switch
  • HP OfficeConnect 1850-24G-2XGT (JL170A#ACF) is built to handle data centers, virtualization hosts and server rooms that need high east-west throughput without drama. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Wiring is handled by 26 total network ports, laid out as 26xGigabit EthernetRJ-45 and 2x10 Gigabit EthernetRJ-45, topping out at 10GbE per port. Layer 2 switching keeps things fast and simple: MAC-address forwarding and VLAN segmentation. Beyond the base ports, there's a fixed-port design that keeps configuration simple. A built-in 128 (MB) of flash storage holds firmware images and config backups on the switch itself. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. Also, twisted pair media keeps it compatible with existing cabling. Buy the HP OfficeConnect 1850-24G-2XGT from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
Product Line OfficeConnect 1850
Model 1850-24G-2XGT
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 26 x Gigabit Ethernet RJ-45
  • 2 x 10 Gigabit Ethernet RJ-45
Total Number of Network Ports 26
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-T
Media Standard Twisted Pair
Manageable Yes
Layer Supported 2
Flash Storage Memory 128 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.42 Inches
Depth 9.7 Inches
Weight 5.86 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 9.1 µs (64-byte packets)
  • 1000 Mb Latency: < 3.7 µs (64-byte packets)
  • 10 Gbps Latency: < 3.7 µs (64-byte packets)
  • Throughput: Up to 65 Mpps (64-byte packets)
  • Switching capacity: 88 Gbps
  • MAC address table size: 16000 entries
