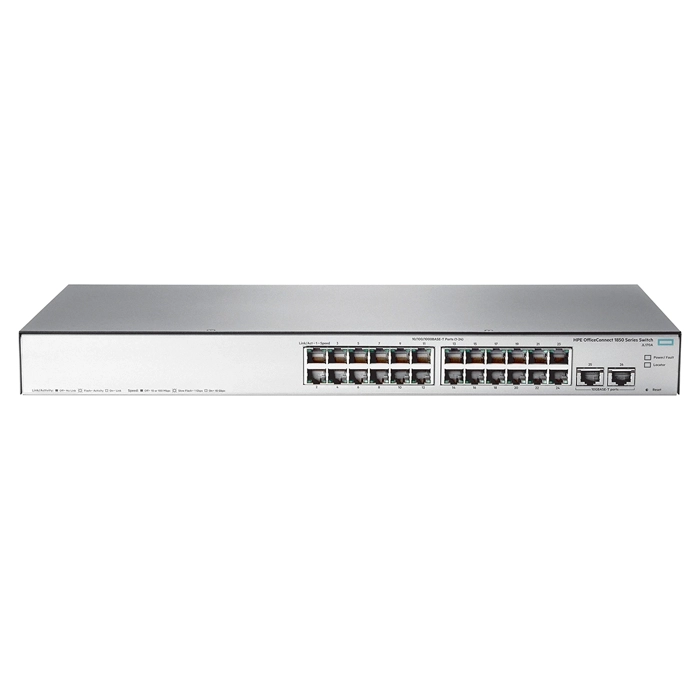

HP JL170A#AKL | OfficeConnect 1850 Series 1850-24G-2XGT 24 x 10/100/1000Base-T RJ-45 and 2 x 10GBase-T RJ-45 Ports Layer 2 Managed Gigabit Ethernet Network Switch

Part No JL170A#AKL
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$1,244.06
$1,169.42
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL170A#AKL | OfficeConnect 1850 Series 1850-24G-2XGT 24 x 10/100/1000Base-T RJ-45 and 2 x 10GBase-T RJ-45 Ports Layer 2 Managed Gigabit Ethernet Network Switch
  • HP OfficeConnect 1850-24G-2XGT (JL170A#AKL) is worth a close look if you're setting up or upgrading a network for media and rendering studios moving large files between workstations and storage. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Wiring is handled by 26 total network ports, laid out as 26xGigabit EthernetRJ-45 and 2x10 Gigabit EthernetRJ-45, topping out at 10GbE per port. Beyond the base ports, there's a fixed-port design that keeps configuration simple. A built-in 128 (MB) of flash storage holds firmware images and config backups on the switch itself. As a Layer 2 switch, it focuses on fast MAC-address forwarding and VLAN segmentation rather than routing. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. Also, twisted pair media keeps it compatible with existing cabling. GotoDirect ships this HP OfficeConnect switch as genuine stock with full warranty backing and fast delivery nationwide.
Technical Documents:
General Information:
Product Line OfficeConnect 1850
Model 1850-24G-2XGT
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 26 x Gigabit Ethernet RJ-45
  • 2 x 10 Gigabit Ethernet RJ-45
Total Number of Network Ports 26
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-T
Media Standard Twisted Pair
Manageable Yes
Layer Supported 2
Flash Storage Memory 128 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.42 Inches
Depth 9.7 Inches
Weight 5.86 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 9.1 µs (64-byte packets)
  • 1000 Mb Latency: < 3.7 µs (64-byte packets)
  • 10 Gbps Latency: < 3.7 µs (64-byte packets)
  • Throughput: Up to 65 Mpps (64-byte packets)
  • Switching capacity: 88 Gbps
  • MAC address table size: 16000 entries
