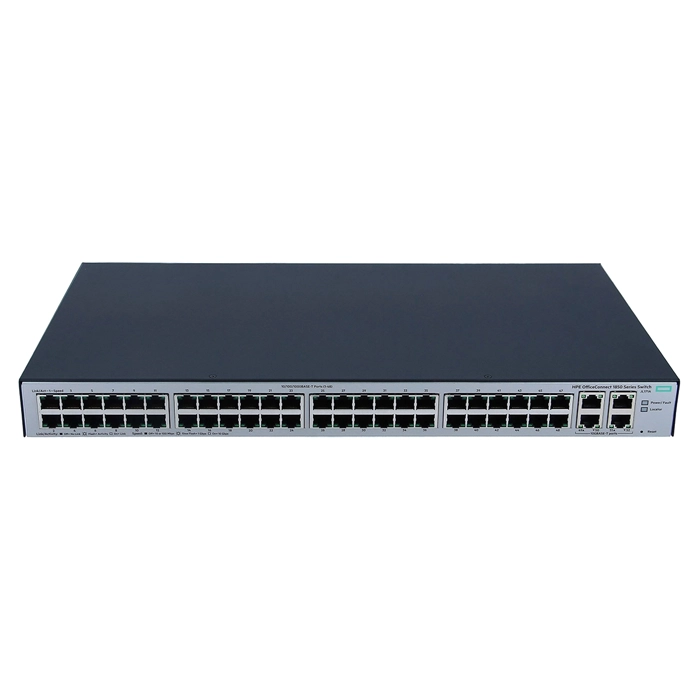

HP JL171A#B2E | OfficeConnect 1850 Series 1850-48G-4XGT 48 x 10/100/1000Base-T RJ-45 and 4 x 10GBase-T RJ-45 Ports Layer 2 Managed Gigabit Ethernet Network Switch

Part No JL171A#B2E
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$883.94
$830.90
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL171A#B2E | OfficeConnect 1850 Series 1850-48G-4XGT 48 x 10/100/1000Base-T RJ-45 and 4 x 10GBase-T RJ-45 Ports Layer 2 Managed Gigabit Ethernet Network Switch
  • HP OfficeConnect 1850-48G-4XGT (JL171A#B2E) is a strong, no-nonsense fit for network cores and aggregation layers feeding busy server racks. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. On the port side, you get 52 total network ports, laid out as 48xGigabit EthernetRJ-45 and 4x10 Gigabit EthernetRJ-45, topping out at 10GbE per port. It also adds a fixed-port design that keeps configuration simple. With 128 (MB) of onboard flash, firmware and configuration backups don't depend on a remote server. Layer 2 switching keeps things fast and simple: MAC-address forwarding and VLAN segmentation. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and standard front-to-back airflow that lines up with typical rack airflow planning. Also, twisted pair media keeps it compatible with existing cabling. GotoDirect stocks the HP OfficeConnect 1850-48G-4XGT as genuine, warranty-covered hardware, with fast delivery across the US.
Technical Documents:
General Information:
Product Line OfficeConnect 1850
Model 1850-48G-4XGT
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x Gigabit Ethernet RJ-45
  • 4 x 10 Gigabit Ethernet RJ-45
Total Number of Network Ports 52
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-T
Media Standard Twisted Pair
Manageable Yes
Layer Supported 2
Flash Storage Memory 128 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.42 Inches
Depth 9.7 Inches
Weight 7.05 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 9.7 µs (64-byte packets)
  • 1000 Mb Latency: < 3.7 µs (64-byte packets)
  • 10 Gbps Latency: < 3.7 µs (64-byte packets)
  • Throughput: Up to 131 Mpps (64-byte packets)
  • Switching capacity: 176 Gbps
  • MAC address table size: 16000 entries
