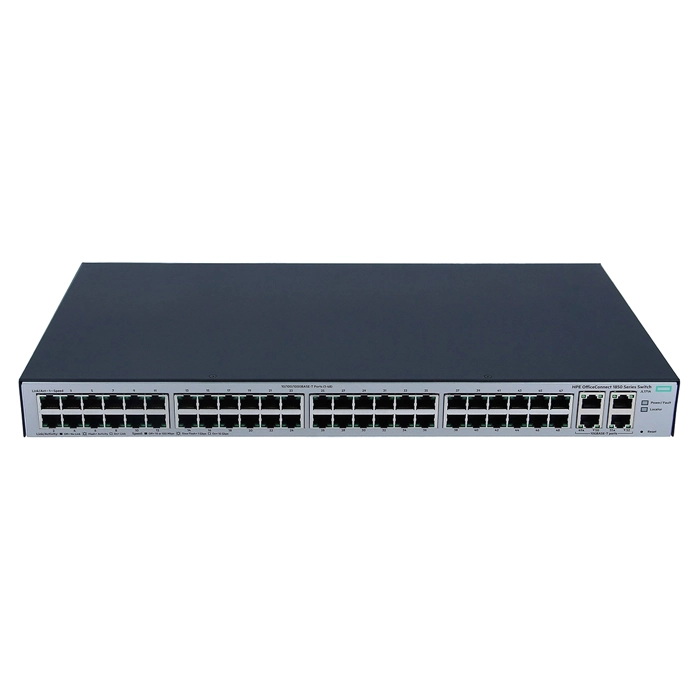

HP JL171AR#ACF | OfficeConnect 1850 Series 1850-48G-4XGT 48 x 10/100/1000Base-T RJ-45 and 4 x 10GBase-T RJ-45 Ports Layer 2 Managed Gigabit Ethernet Network Switch

Part No JL171AR#ACF
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$883.94
$830.90
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL171AR#ACF | OfficeConnect 1850 Series 1850-48G-4XGT 48 x 10/100/1000Base-T RJ-45 and 4 x 10GBase-T RJ-45 Ports Layer 2 Managed Gigabit Ethernet Network Switch
  • HP OfficeConnect 1850-48G-4XGT (JL171AR#ACF) is built to handle IT teams building out server, NAS and storage backbones without drama. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Wiring is handled by 52 total network ports, laid out as 48xGigabit EthernetRJ-45 and 4x10 Gigabit EthernetRJ-45, topping out at 10GbE per port. It rounds this out with a fixed-port design that keeps configuration simple. Onboard flash storage of 128 (MB) keeps firmware and config backups local to the switch. Layer 2 operation keeps the design lean - MAC-table forwarding and VLANs, without routing overhead. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. Also, twisted pair media keeps it compatible with existing cabling. Buy the HP OfficeConnect 1850-48G-4XGT from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
Product Line OfficeConnect 1850
Model 1850-48G-4XGT
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x Gigabit Ethernet RJ-45
  • 4 x 10 Gigabit Ethernet RJ-45
Total Number of Network Ports 52
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-T
Media Standard Twisted Pair
Manageable Yes
Layer Supported 2
Flash Storage Memory 128 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.42 Inches
Depth 9.7 Inches
Weight 7.05 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 9.7 µs (64-byte packets)
  • 1000 Mb Latency: < 3.7 µs (64-byte packets)
  • 10 Gbps Latency: < 3.7 µs (64-byte packets)
  • Throughput: Up to 131 Mpps (64-byte packets)
  • Switching capacity: 176 Gbps
  • MAC address table size: 16000 entries
