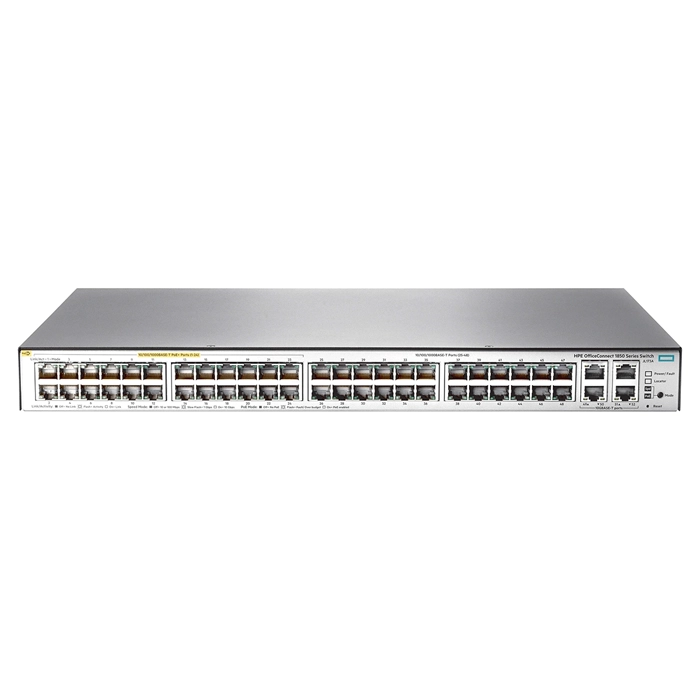

HP JL173AR | OfficeConnect 1850 Series 1850-48G-4XGT-PoE+ (370W) 24 x 10/100/1000Base-T RJ-45 PoE+ and 24 x 10/100/1000Base-T RJ-45 and 4 x 10GBase-T RJ-45 Ports Layer 2 Managed Gigabit Ethernet Network Switch

Part No JL173AR
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$459.95
$441.55
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL173AR | OfficeConnect 1850 Series 1850-48G-4XGT-PoE+ (370W) 24 x 10/100/1000Base-T RJ-45 PoE+ and 24 x 10/100/1000Base-T RJ-45 and 4 x 10GBase-T RJ-45 Ports Layer 2 Managed Gigabit Ethernet Network Switch
  • HP OfficeConnect 1850-48G-4XGT-PoE+ (370W) (JL173AR) makes sense if you're shopping for enterprises rolling out PoE access points, IP cameras and phones across large floors. It's a good match for IT teams standardizing wiring closets across a campus, schools and offices deploying wireless APs at scale, and security teams running IP camera networks that need power and data on one cable. Facilities with virtualization or NAS traffic riding the same switch will also benefit from the extra headroom. It brings 52 total network ports, laid out as 24xGigabit EthernetPoE+,RJ-45 and 24xGigabit EthernetRJ-45 and 4x10 Gigabit EthernetRJ-45, topping out at 10GbE per port. With PoE+ on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. Layer 2 operation keeps the design lean - MAC-table forwarding and VLANs, without routing overhead. Beyond the base ports, there's a fixed-port design that keeps configuration simple. Onboard flash storage of 128 (MB) keeps firmware and config backups local to the switch. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, twisted pair media keeps it compatible with existing cabling. GotoDirect sources this HP OfficeConnect switch as a genuine, warranty-backed unit, with fast shipping across the US.
Technical Documents:
General Information:
Product Line OfficeConnect 1850
Model 1850-48G-4XGT-PoE+ (370W)
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet PoE+, RJ-45
  • 24 x Gigabit Ethernet RJ-45
  • 4 x 10 Gigabit Ethernet RJ-45
Total Number of Network Ports 52
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-T
Media Standard Twisted Pair
Manageable Yes
Layer Supported 2
Flash Storage Memory 128 MB
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.42 Inches
Depth 12.7 Inches
Weight 10.3 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 10 µs (64-byte packets)
  • 1000 Mb Latency: < 3.8 µs (64-byte packets)
  • 10 Gbps Latency: < 3.8 µs (64-byte packets)
  • Throughput: Up to 131 Mpps (64-byte packets)
  • Switching capacity: 176 Gbps
  • MAC address table size: 16000 entries
