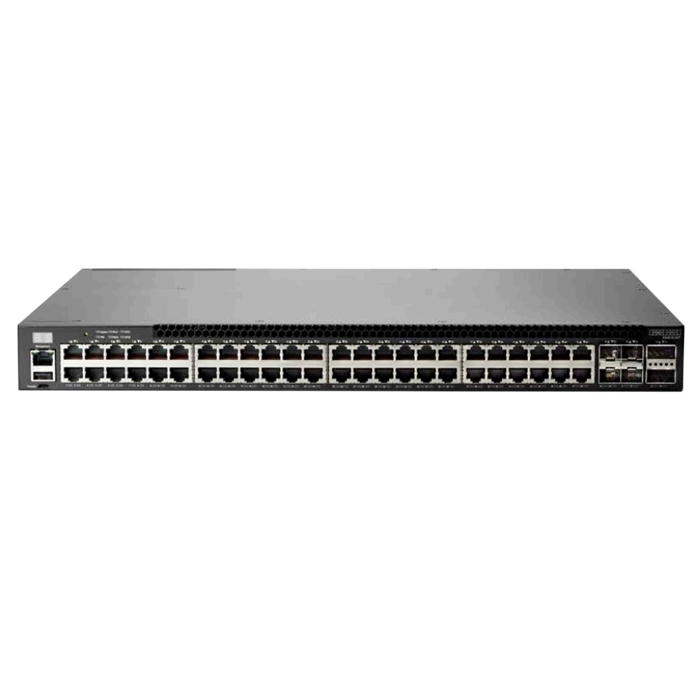

HP JL223AR | Altoline 6900 Series 6900 48G 4XG 2QSFP 48 x 1GbE RJ-45 and 4 x 10GbE SFP+ and 2 x 40GbE QSFP+ Ports ARM ONIE AC Layer 3 Managed Switch
$3,099.17
$2,944.21Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL223AR | Altoline 6900 Series 6900 48G 4XG 2QSFP 48 x 1GbE RJ-45 and 4 x 10GbE SFP+ and 2 x 40GbE QSFP+ Ports ARM ONIE AC Layer 3 Managed Switch
- HP Altoline 6900 48G 4XG 2QSFP (JL223AR) is built to handle teams scaling out AI/ML training clusters that need fast east-west links without drama. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Port-wise, it offers 54 total network ports, laid out as 48xGigabit EthernetRJ-45 and 4x10 Gigabit EthernetSFP+,Uplink and 2x40 Gigabit EthernetQSFP+,Stacking, topping out at 40GbE per port. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. It rounds this out with SFP+,QSFP+ expansion for uplinks and stacking so multiple units run as one logical switch. With 8 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+,QSFP+ covers both copper and fiber runs. GotoDirect sources this HP Altoline switch as a genuine, warranty-backed unit, with fast shipping across the US.
Technical Documents:
General Information:
| Product Line | Altoline 6900 |
|---|---|
| Model | 6900 48G 4XG 2QSFP |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 54 |
| Number of Expansion Slots | 6 |
| Expansion Slots Details |
|
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Stacking Port | Yes |
| Flash Storage Memory | 8 GB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| Height | 1.72 Inches |
| Width | 17.32 Inches |
| Depth | 16.1 Inches |
| Weight | 5.38 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
