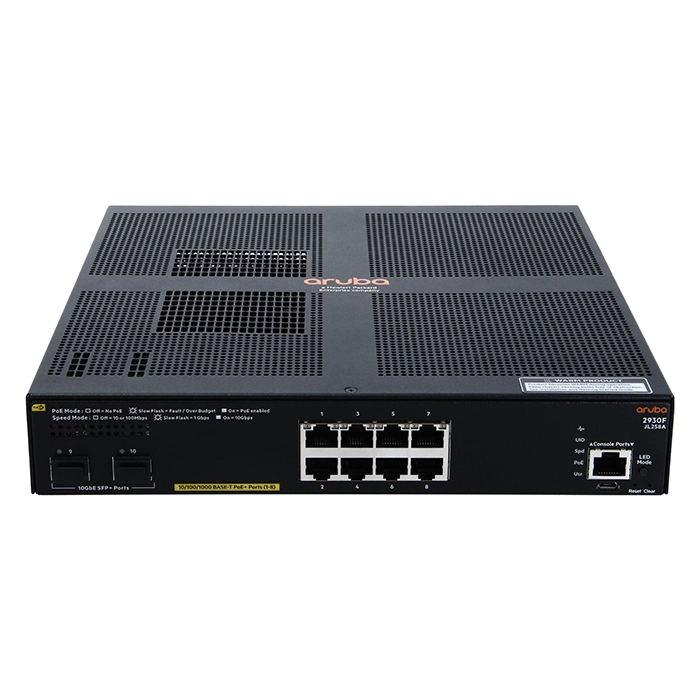

HP JL258A#AKL | Aruba 2930F Series 2930F 8G PoE+ 2SFP+ 8 x RJ-45 PoE+ 10/100/1000Base-T and 2 x SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch

Part No JL258A#AKL
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$514.54
$483.67
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL258A#AKL | Aruba 2930F Series 2930F 8G PoE+ 2SFP+ 8 x RJ-45 PoE+ 10/100/1000Base-T and 2 x SFP+ Ports Layer 3 Managed Gigabit Ethernet Network Switch
  • HP Aruba 2930F 8G PoE+ 2SFP+ (JL258A#AKL) is built to handle home labs and small offices adding a few powered devices to the network without drama. It suits small offices, retail locations and branch sites that need to power a modest number of APs, cameras or VoIP phones, plus home labs where PoE simplifies cabling without justifying an enterprise-class switch. On the port side, you get 10 total network ports, laid out as 8xGigabit EthernetPoE+,RJ-45 and 2x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. Beyond the base ports, there's SFP+ expansion for uplinks. Firmware and configuration live in onboard non-volatile memory, surviving reboots and power cycles. With PoE+ on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. It slots into a standard 19-inch rack in a 1U footprint, without any special hardware, runs on ac input power, and follows standard front-to-back airflow for predictable cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect ships this HP Aruba switch as genuine stock with full warranty backing and fast delivery nationwide.
  • UPC: 190017006727
Technical Documents:
General Information:
Product Line 2930F
Model 2930F 8G PoE+ 2SFP+
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 8 x Gigabit Ethernet PoE+, RJ-45
  • 2 x 10 Gigabit Ethernet SFP+, Uplink
Total Number of Network Ports 10
Number of Expansion Slots 2
Expansion Slots Details SFP+
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 10 Inches
Depth 10 Inches
Weight 4.41 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • IPv6 Ready Certified
  • 1,000 Mb Latency: < 3.8 μs (64-byte packets)
  • 10 Gbps Latency: < 2.9 μs (64-byte packets)
  • Throughput: up to 41.7 Mpps
  • Switching capacity: 56 Gbps
  • Routing table size: 2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
  • MAC address table size: 32,768 entries
