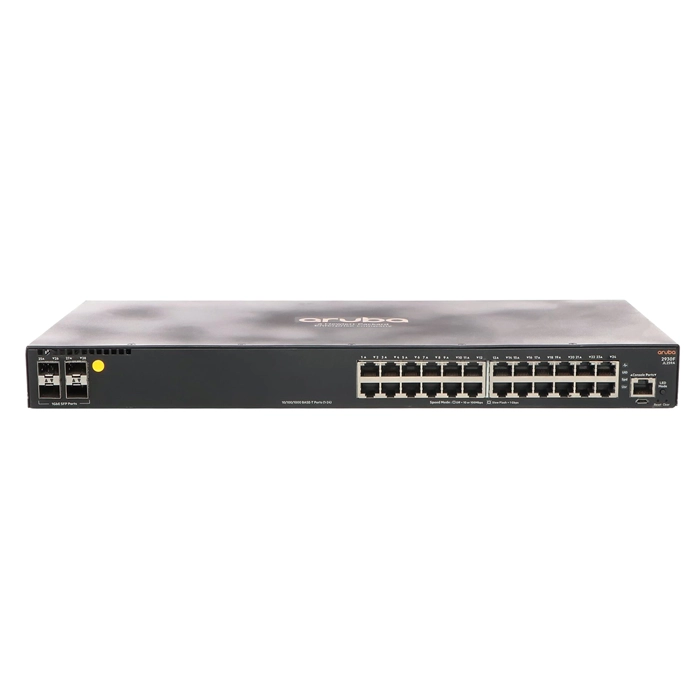

HP JL259A#AKL | Aruba 2930F Series 2930F 24G 4SFP 24 x RJ-45 10/100/1000Base-T and 4 x SFP Ports Layer 3 Managed Gigabit Ethernet Network Switch

Part No JL259A#AKL
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$3,117.43
$2,930.38
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL259A#AKL | Aruba 2930F Series 2930F 24G 4SFP 24 x RJ-45 10/100/1000Base-T and 4 x SFP Ports Layer 3 Managed Gigabit Ethernet Network Switch
  • HP Aruba 2930F 24G 4SFP (JL259A#AKL) is a solid pick for media and rendering studios moving large files between workstations and storage that don't want to overthink the network layer. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. On the port side, you get 28 total network ports, laid out as 24xGigabit EthernetRJ-45 and 4xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. It rounds this out with SFP (mini-GBIC) expansion for uplinks. Configuration persists in onboard memory through reboots and power cycles, no separate storage needed. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air side-to-side airflow, so it fits cleanly next to existing gear. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. GotoDirect stocks the HP Aruba 2930F 24G 4SFP as genuine, warranty-covered hardware, with fast delivery across the US.
Technical Documents:
General Information:
Product Line 2930F
Model 2930F 24G 4SFP
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet RJ-45
  • 4 x Gigabit Ethernet SFP (mini-GBIC), Uplink
Total Number of Network Ports 28
Number of Expansion Slots 4
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Side-to-Side AirFlow
Height 1.73 Inches
Width 17.42 Inches
Depth 7.88 Inches
Weight 5.31 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • IPv6 Ready Certified
  • 1,000 Mb Latency: < 3.8 μs (64-byte packets)
  • 10 Gbps Latency:
  • Throughput: up to 41.7 Mpps
  • Switching capacity: 56 Gbps
  • Routing table size: 2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
  • MAC address table size: 32,768 entries
