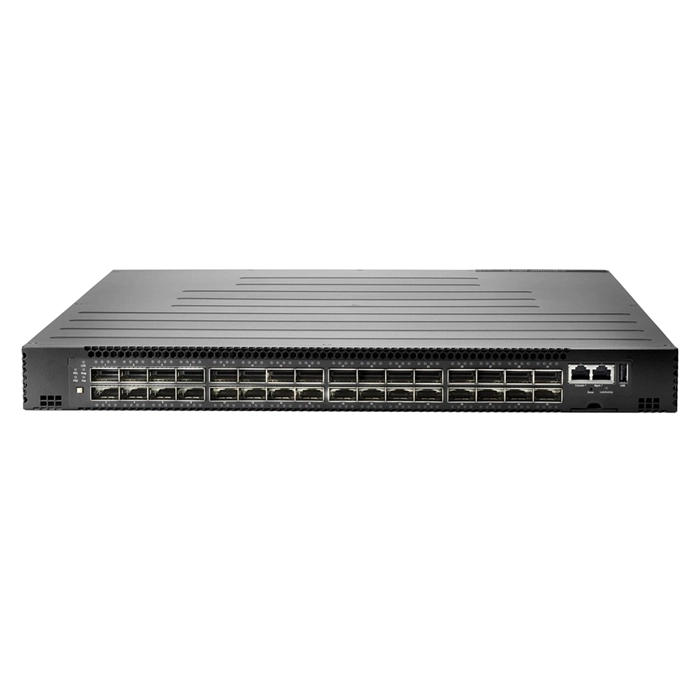

HP JL279A#ACF | Altoline 6960 Series 6960 32QSFP28 32 x 100GbE QSFP28 Ports x86 ONIE AC Front-to-Back Airflow Layer 3 Managed Switch

Part No JL279A#ACF
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$3,335.11
$3,135.00
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL279A#ACF | Altoline 6960 Series 6960 32QSFP28 32 x 100GbE QSFP28 Ports x86 ONIE AC Front-to-Back Airflow Layer 3 Managed Switch
  • HP Altoline 6960 32QSFP28 (JL279A#ACF) is the switch IT teams supporting data centers, virtualization hosts and server rooms that need high east-west throughput often turn to when they need something that just works. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Wiring is handled by 32 total network ports, laid out as 32x100 Gigabit EthernetQSFP28, topping out at 100GbE per port. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. It rounds this out with QSFP28 expansion for uplinks. A built-in 8 (GB) of flash storage holds firmware images and config backups on the switch itself. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and front-to-rear airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over QSFP28 covers both copper and fiber runs. When you order the HP Altoline 6960 32QSFP28 through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.
  • UPC: 190017036960
General Information:
Product Line Altoline 6960
Model 6960 32QSFP28
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots 32 x 100 Gigabit Ethernet QSFP28
Total Number of Network Ports 32
Number of Expansion Slots 32
Expansion Slots Details QSFP28
Modular Expansion Yes
Ethernet Technology 100 Gigabit Ethernet
Network Technology 100GBase-X
Media Standard Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Flash Storage Memory 8 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Front-to-Rear AirFlow
Height 1.73 Inches
Width 17.26 Inches
Depth 20.28 Inches
Weight 8.4 kg
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • Routing/Switching capacity: 3.2 Tbps
  • MAC address table size: 8000 entries
