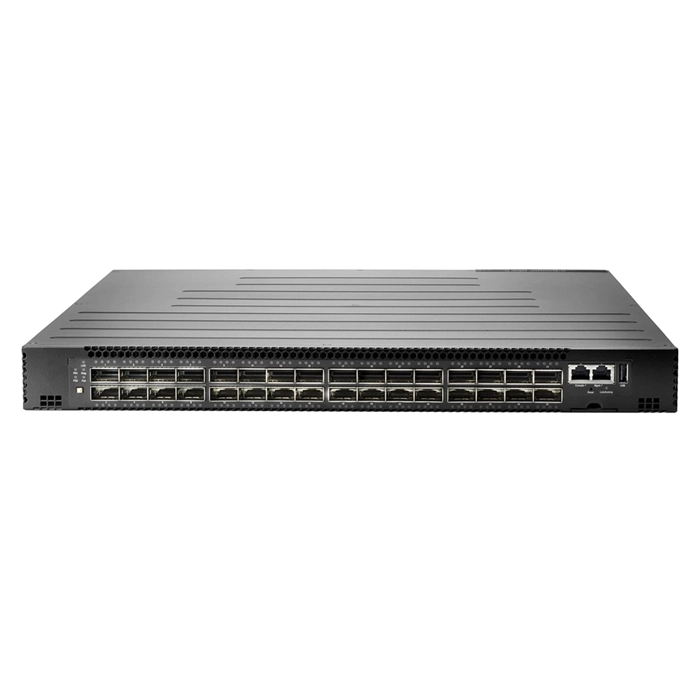

HP JL280A#ACF | Altoline 6960 Series 6960 32QSFP28 32 x 100GbE QSFP28 Ports x86 ONIE AC Back-to-Front Airflow Layer 3 Managed Switch

Part No JL280A#ACF
Manufacturer HP
Condition Refurbished
Availability Call For Price
Call For Price

Speak with our team for current pricing and availability.

Call Now +1 (888) 203 - 4073
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL280A#ACF | Altoline 6960 Series 6960 32QSFP28 32 x 100GbE QSFP28 Ports x86 ONIE AC Back-to-Front Airflow Layer 3 Managed Switch
  • HP Altoline 6960 32QSFP28 (JL280A#ACF) is built to handle colocation and hosting environments packing dense server racks without drama. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. It brings 32 total network ports, laid out as 32x100 Gigabit EthernetQSFP28, topping out at 100GbE per port. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. Beyond the base ports, there's QSFP28 expansion for uplinks. Onboard flash storage of 8 (GB) keeps firmware and config backups local to the switch. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses rear-to-front airflow to match common data-center airflow layouts. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over QSFP28 covers both copper and fiber runs. When you order the HP Altoline 6960 32QSFP28 through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.
General Information:
Product Line Altoline 6960
Model 6960 32QSFP28
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots 32 x 100 Gigabit Ethernet QSFP28
Total Number of Network Ports 32
Number of Expansion Slots 32
Expansion Slots Details QSFP28
Modular Expansion Yes
Ethernet Technology 100 Gigabit Ethernet
Network Technology 100GBase-X
Media Standard Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Flash Storage Memory 8 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Rear-to-Front AirFlow
Height 1.73 Inches
Width 17.26 Inches
Depth 20.28 Inches
Weight 8.4 kg
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • Routing/Switching capacity: 3.2 Tbps
  • MAC address table size: 8000 entries
