HP JL313A#ACF | Altoline 6941 Series 6941 32QSFP+ 32 x 40GbE QSFP+ Ports x86 ONIE AC Front-to-Back Airflow Layer 3 Managed Switch

Part No JL313A#ACF
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$961.73
$904.03
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:

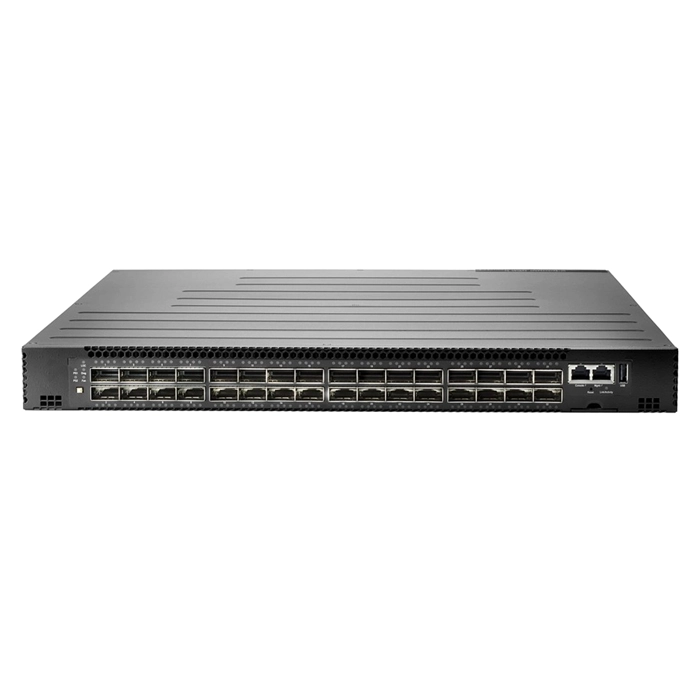

  • HP JL313A#ACF | Altoline 6941 Series 6941 32QSFP+ 32 x 40GbE QSFP+ Ports x86 ONIE AC Front-to-Back Airflow Layer 3 Managed Switch
  • HP Altoline 6941 32QSFP+ (JL313A#ACF) is the switch IT teams supporting data centers, virtualization hosts and server rooms that need high east-west throughput often turn to when they need something that just works. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Port-wise, it offers 32 total network ports, laid out as 32x40 Gigabit EthernetQSFP+, topping out at 40GbE per port. It rounds this out with QSFP+ expansion for uplinks. A built-in 8 (GB) of flash storage holds firmware images and config backups on the switch itself. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air front-to-rear airflow, so it fits cleanly next to existing gear. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over QSFP+ covers both copper and fiber runs. Buy the HP Altoline 6941 32QSFP+ from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
General Information:
Product Line Altoline 6941
Model 6941 32QSFP+
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots 32 x 40 Gigabit Ethernet QSFP+
Total Number of Network Ports 32
Number of Expansion Slots 32
Expansion Slots Details QSFP+
Modular Expansion Yes
Ethernet Technology 40 Gigabit Ethernet
Network Technology 40GBase-X
Media Standard Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Flash Storage Memory 8 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Front-to-Rear AirFlow
Height 1.71 Inches
Width 17.26 Inches
Depth 20.28 Inches
Weight 9.65 kg
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 40 Gbps Latency: > .6 µs
  • Throughput up to: 1440 Bpps
  • Routing/Switching capacity: 2560 Gbps
  • Routing table size: 64000 entries (IPv4), 20000 entries (IPv6)
  • MAC address table size: 320000 entries
