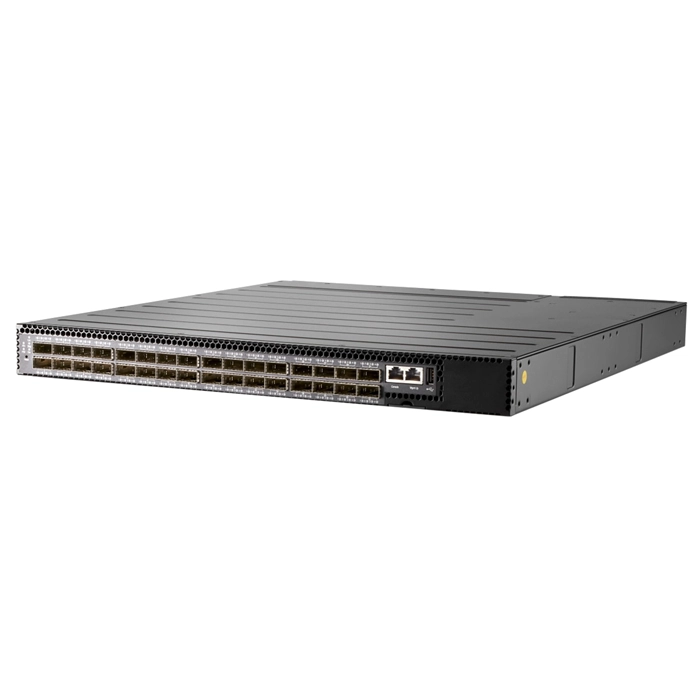

HP JL314A#B2E | Altoline 6941 Series 6941 32QSFP+ 32 x 40GbE QSFP+ Ports x86 ONIE AC Back-to-Front Airflow Layer 3 Managed Switch

Part No JL314A#B2E
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$7,355.50
$7,061.28
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL314A#B2E | Altoline 6941 Series 6941 32QSFP+ 32 x 40GbE QSFP+ Ports x86 ONIE AC Back-to-Front Airflow Layer 3 Managed Switch
  • HP Altoline 6941 32QSFP+ (JL314A#B2E) is a strong, no-nonsense fit for media and rendering studios moving large files between workstations and storage. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Port-wise, it offers 32 total network ports, laid out as 32x40 Gigabit EthernetQSFP+, topping out at 40GbE per port. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. On top of that, it has QSFP+ expansion for uplinks. Onboard flash storage of 8 (GB) keeps firmware and config backups local to the switch. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses rear-to-front airflow to match common data-center airflow layouts. Also, built-in console access plus a USB port makes setup and firmware recovery easier; optical fiber media over QSFP+ covers both copper and fiber runs. GotoDirect ships this HP Altoline switch as genuine stock with full warranty backing and fast delivery nationwide.
General Information:
Product Line Altoline 6941
Model 6941 32QSFP+
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots 32 x 40 Gigabit Ethernet QSFP+
Total Number of Network Ports 32
Number of Expansion Slots 32
Expansion Slots Details QSFP+
Modular Expansion Yes
Ethernet Technology 40 Gigabit Ethernet
Network Technology 40GBase-X
Media Standard Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Flash Storage Memory 8 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Rear-to-Front AirFlow
Height 1.71 Inches
Width 17.26 Inches
Depth 20.28 Inches
Weight 9.65 kg
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 40 Gbps Latency: > .6 µs
  • Throughput up to: 1440 Bpps
  • Routing/Switching capacity: 2560 Gbps
  • Routing table size: 64000 entries (IPv4), 20000 entries (IPv6)
  • MAC address table size: 320000 entries
