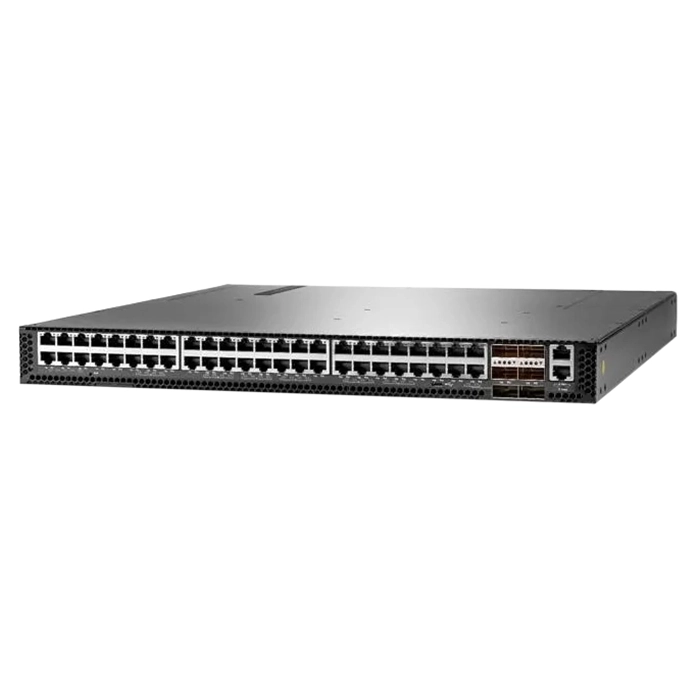

HP JL315A#AKM | Altoline 6921 Series 6921 48XGT 6QSFP+ 48 x 10GbE RJ-45 and 6 x 40GbE QSFP+ Ports x86 ONIE AC Front-to-Back Airflow Layer 3 Managed Switch

Part No JL315A#AKM
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$14,032.85
$13,471.54
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL315A#AKM | Altoline 6921 Series 6921 48XGT 6QSFP+ 48 x 10GbE RJ-45 and 6 x 40GbE QSFP+ Ports x86 ONIE AC Front-to-Back Airflow Layer 3 Managed Switch
  • HP Altoline 6921 48XGT 6QSFP+ (JL315A#AKM) makes sense if you're shopping for media and rendering studios moving large files between workstations and storage. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. On the port side, you get 54 total network ports, laid out as 48x10 Gigabit EthernetRJ-45 and 6x40 Gigabit EthernetQSFP+,Uplink, topping out at 40GbE per port. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. On top of that, it has QSFP+ expansion for uplinks. With 8 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and front-to-rear airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over QSFP+ covers both copper and fiber runs. Buy the HP Altoline 6921 48XGT 6QSFP+ from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
General Information:
Product Line Altoline 6921
Model 6921 48XGT 6QSFP+
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x 10 Gigabit Ethernet RJ-45
  • 6 x 40 Gigabit Ethernet QSFP+, Uplink
Total Number of Network Ports 54
Number of Expansion Slots 6
Expansion Slots Details QSFP+
Modular Expansion Yes
Ethernet Technology
  • 10 Gigabit Ethernet
  • 40 Gigabit Ethernet
Network Technology
  • 10GBase-X
  • 40GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Flash Storage Memory 8 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Front-to-Rear AirFlow
Height 1.71 Inches
Width 17.4 Inches
Depth 18.6 Inches
Weight 8.5 kg
Compliance Standards:
Green Compliance
  • RoHS
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • Latency: 720 ns
  • Throughput: Up to 1 Bpps
  • Routing/Switching capacity: 1440 Gbps
  • Routing table size: 64000 entries (IPv4), 20000 entries (IPv6)
  • MAC address table size: 320000 entries
