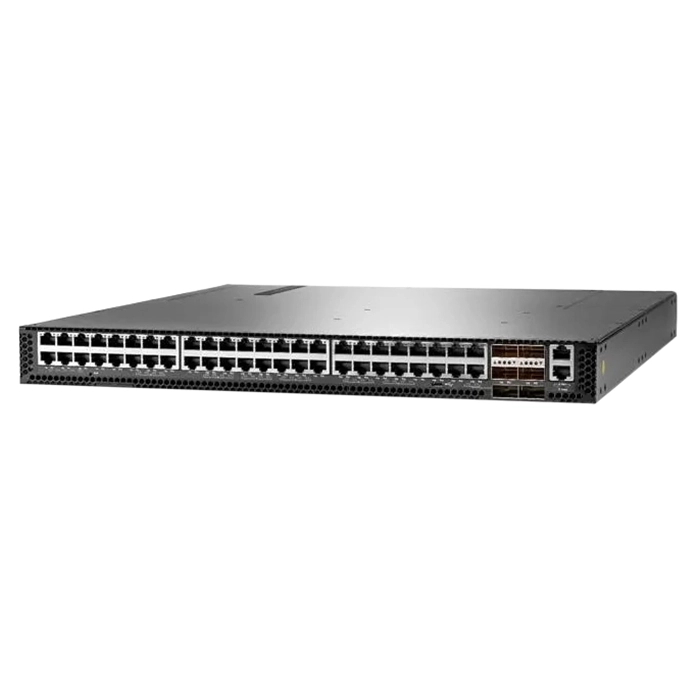

HP JL315AR#ABB | Altoline 6921 Series 6921 48XGT 6QSFP+ 48 x 10GbE RJ-45 and 6 x 40GbE QSFP+ Ports x86 ONIE AC Front-to-Back Airflow Layer 3 Managed Switch
$14,032.85
$13,471.54Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP JL315AR#ABB | Altoline 6921 Series 6921 48XGT 6QSFP+ 48 x 10GbE RJ-45 and 6 x 40GbE QSFP+ Ports x86 ONIE AC Front-to-Back Airflow Layer 3 Managed Switch
- HP Altoline 6921 48XGT 6QSFP+ (JL315AR#ABB) is the switch IT teams supporting IT teams building out server, NAS and storage backbones often turn to when they need something that just works. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Wiring is handled by 54 total network ports, laid out as 48x10 Gigabit EthernetRJ-45 and 6x40 Gigabit EthernetQSFP+,Uplink, topping out at 40GbE per port. Beyond the base ports, there's QSFP+ expansion for uplinks. A built-in 8 (GB) of flash storage holds firmware images and config backups on the switch itself. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. It slots into a standard 19-inch rack in a 1U footprint, without any special hardware, runs on ac input power, and follows front-to-rear airflow for predictable cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over QSFP+ covers both copper and fiber runs. Buy the HP Altoline 6921 48XGT 6QSFP+ from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
| Product Line | Altoline 6921 |
|---|---|
| Model | 6921 48XGT 6QSFP+ |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 54 |
| Number of Expansion Slots | 6 |
| Expansion Slots Details | QSFP+ |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| USB Port | Yes |
| Console Management Port | Yes |
| Flash Storage Memory | 8 GB |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| AirFlow | Front-to-Rear AirFlow |
| Height | 1.71 Inches |
| Width | 17.4 Inches |
| Depth | 18.6 Inches |
| Weight | 8.5 kg |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
