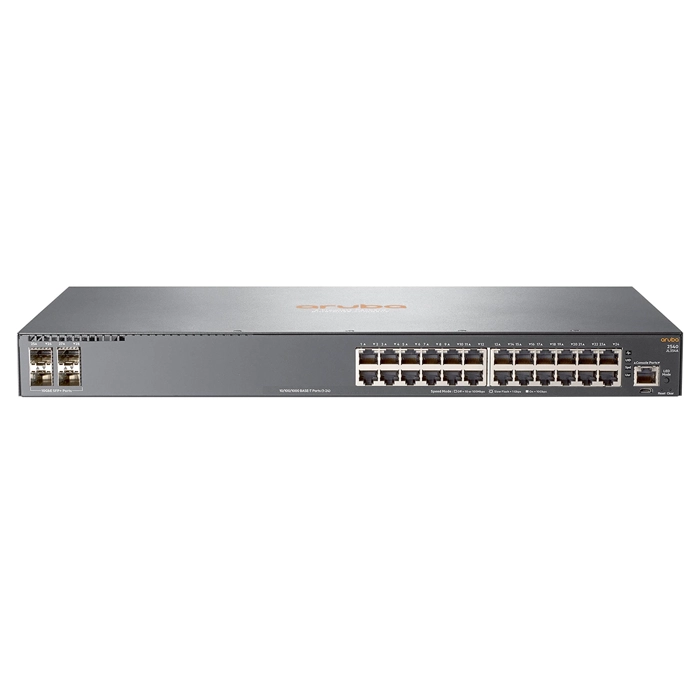

HP JL354A#ACF | Aruba 2540 Series 2540 24G 4SFP+ 24 x RJ-45 10/100/1000Base-T and 4 x SFP+ Ports Layer 2 Managed Gigabit Ethernet Network Switch

Part No JL354A#ACF
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$379.72
$356.94
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP JL354A#ACF | Aruba 2540 Series 2540 24G 4SFP+ 24 x RJ-45 10/100/1000Base-T and 4 x SFP+ Ports Layer 2 Managed Gigabit Ethernet Network Switch
  • HP Aruba 2540 24G 4SFP+ (JL354A#ACF) shows up a lot in shortlists for organizations running virtualization clusters, NAS arrays or render farms that need low-latency, high-bandwidth links, and for good reason. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Wiring is handled by 28 total network ports, laid out as 24xGigabit EthernetRJ-45 and 4x10 Gigabit EthernetSFP+,Uplink, topping out at 10GbE per port. Layer 2 switching keeps things fast and simple: MAC-address forwarding and VLAN segmentation. Beyond the base ports, there's SFP+ expansion for uplinks. Configuration persists in onboard memory through reboots and power cycles, no separate storage needed. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air side-to-side airflow for straightforward rack cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+ covers both copper and fiber runs. GotoDirect stocks the HP Aruba 2540 24G 4SFP+ as genuine, warranty-covered hardware, with fast delivery across the US.
Technical Documents:
General Information:
Product Line 2540
Model 2540 24G 4SFP+
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet RJ-45
  • 4 x 10 Gigabit Ethernet SFP+, Uplink
Total Number of Network Ports 28
Number of Expansion Slots 4
Expansion Slots Details SFP+
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 2
USB Port Yes
Console Management Port Yes
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
AirFlow Side-to-Side AirFlow
Height 1.73 Inches
Width 17.42 Inches
Depth 7.88 Inches
Weight 5.31 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 1,000 MB Latency: < 3.8 µs (64-byte packets)
  • 10 Gbps Latency: < 1.6 µs (64-byte packets)
  • Throughput: up to 95.2 Mpps
  • Switching capacity: 128 Gbps
  • Routing table size: 2,000 entries (IPv4), 1,000 entries (IPv6)
  • MAC address table size: 16,384 entries
